WTPS Expansion & Contraction Pipe Joint Master Catalogue
EN · v2026 · 21.1 MB · 28 thg 8, 2026
WTPS · South Korea

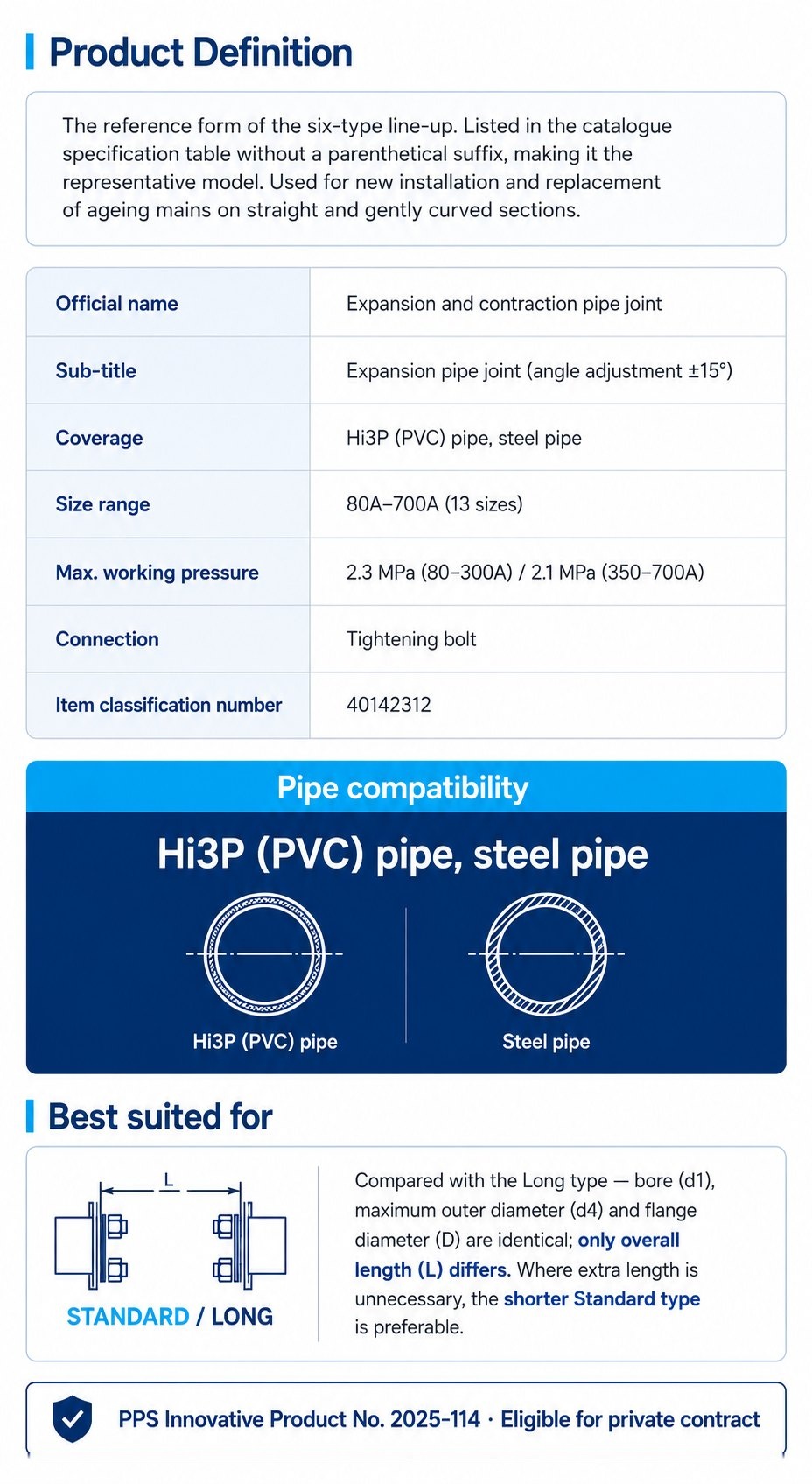

WTPS Expansion and Contraction Pipe Joint — Standard Type
Ductile Iron / Cast Steel / Stainless Steel SUS304 with EPDM Gasket
Straight and gently curved water supply mainsHigh rise commercial riser piping thermal compensationUnderground municipal water distribution networksHVAC Chiller system vibration isolation
Quick facts
- Country of origin
- South Korea
- Size
- DN50 (2 inch), DN80 (3 inch), DN100 (4 inch), DN150 (6 inch), DN200 (8 inch), DN250 (10 inch), DN300 (12 inch), DN400 ~ DN600
- Thickness
- Flange Rating: PN16 / PN25 / PN40
- Finish
- Fusion Bonded Epoxy (FBE) Anti-Corrosion Coating (Internal & External), Stainless Steel Mirror / Passivated Finish
- MOQ
- 1 Unit
- Lead time
- 3 - 5 Weeks
- Warranty
- 5 Years Project Warranty / 30 Years Design Life
Commercial
Project-ready details
Information your specification, BOQ and procurement teams need before requesting samples or quotations.
| Material | Ductile Iron / Cast Steel / Stainless Steel SUS304 with EPDM Gasket |
|---|---|
| Size | DN50 (2 inch), DN80 (3 inch), DN100 (4 inch), DN150 (6 inch), DN200 (8 inch), DN250 (10 inch), DN300 (12 inch), DN400 ~ DN600 |
| Thickness | Flange Rating: PN16 / PN25 / PN40 |
| Finish | Fusion Bonded Epoxy (FBE) Anti-Corrosion Coating (Internal & External), Stainless Steel Mirror / Passivated Finish |
| Certificates | ISO 9001:2015, ISO 14001:2015, PPS Korea Innovative Prototype, Korea Materials & Parts Specialty Certificate |
| MOQ | 1 Unit |
| Lead time | 3 - 5 Weeks |
| Price range | On project specification |
| Country of origin | South Korea |
| Warranty | 5 Years Project Warranty / 30 Years Design Life |
Technical
| nominal diameter range | DN50 to DN600 (2" to 24") |
|---|---|
| working pressure rating | 1.6 MPa to 4.0 MPa (PN16 - PN40) |
| angular deflection degrees | ±15° dynamic multi-directional ball rotation |
| axial expansion stroke mm | 50mm ~ 120mm standard displacement |
| operating temperature c | -20°C to +110°C |
| leak tightness test pressure | 1.5x nominal working pressure (Hydrostatic test) |
