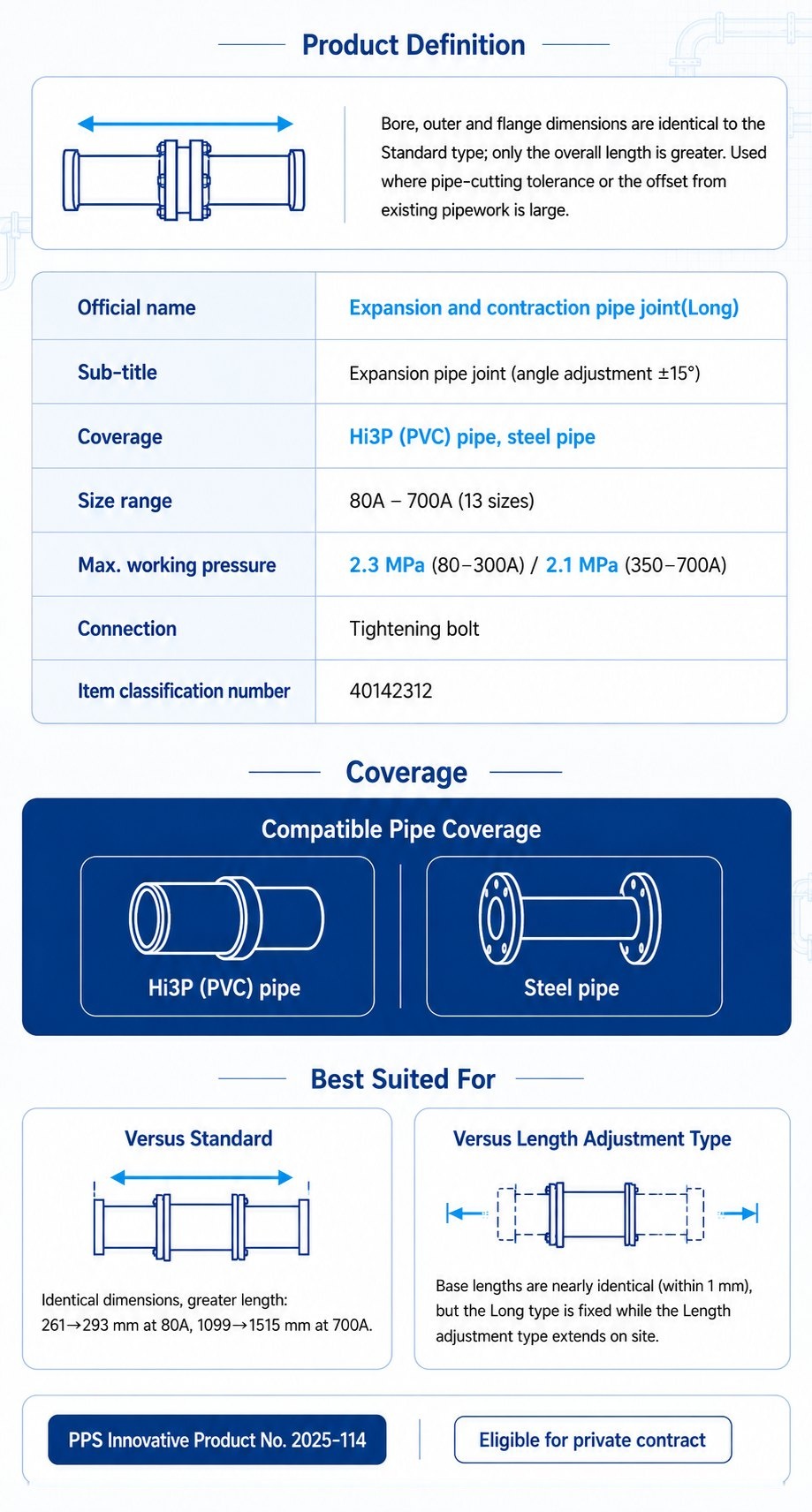

WTPS Expansion and Contraction Pipe Joint — Long Type
Ductile Iron / Cast Steel / Stainless Steel SUS304 with EPDM Gasket
Bridge crossing pipelines with large thermal movementBuilding structural expansion joint transitionsExtreme weather outdoor water supply pipelinesIndustrial chemical and process cooling water
Quick facts
- Country of origin
- South Korea
- Size
- DN80, DN100, DN150, DN200, DN250, DN300, DN400 ~ DN600
- Thickness
- Flange Rating: PN16 / PN25
- Finish
- Fusion Bonded Epoxy (FBE) Heavy Duty Marine Grade, Passivated Stainless Steel
- MOQ
- 1 Unit
- Lead time
- 3 - 5 Weeks
- Warranty
- 5 Years Project Warranty
Commercial
Project-ready details
Information your specification, BOQ and procurement teams need before requesting samples or quotations.
| Material | Ductile Iron / Cast Steel / Stainless Steel SUS304 with EPDM Gasket |
|---|---|
| Size | DN80, DN100, DN150, DN200, DN250, DN300, DN400 ~ DN600 |
| Thickness | Flange Rating: PN16 / PN25 |
| Finish | Fusion Bonded Epoxy (FBE) Heavy Duty Marine Grade, Passivated Stainless Steel |
| Certificates | ISO 9001:2015, ISO 14001:2015, PPS Korea Innovative Prototype |
| MOQ | 1 Unit |
| Lead time | 3 - 5 Weeks |
| Price range | On project specification |
| Country of origin | South Korea |
| Warranty | 5 Years Project Warranty |
Technical
| nominal diameter range | DN80 to DN600 |
|---|---|
| working pressure rating | 1.6 MPa to 2.5 MPa |
| axial expansion stroke mm | 150mm ~ 300mm extended stroke |
| angular deflection degrees | ±15° omni-directional rotation |
| body material | Ductile Iron FCD450 / Stainless Steel 304 |
| bursting pressure safety factor | > 3.0x nominal pressure |
