WTPS · South Korea

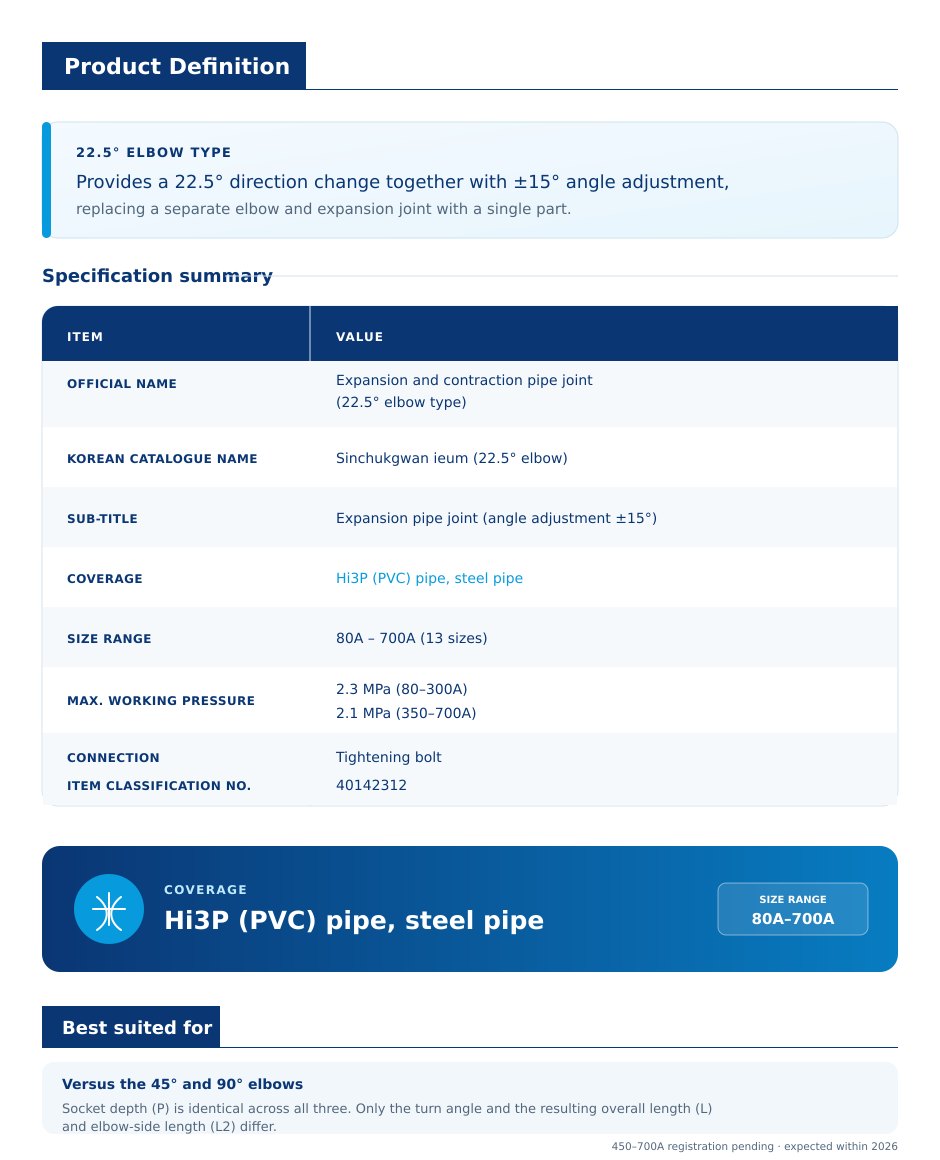

WTPS Expansion and Contraction Pipe Joint — 22.5° Elbow Type
Ductile Iron / Stainless Steel SUS304 with Integrated Angular Joint
Piping alignment along gently curving roadsUnderground utility avoidance routingFoundation perimeter water supply distributionHillside terrain slope alignment
Quick facts
- Country of origin
- South Korea
- Size
- DN80, DN100, DN150, DN200, DN250, DN300
- Thickness
- PN16 / PN25
- Finish
- Internal/External Epoxy Coating
- MOQ
- 1 Unit
- Lead time
- 3 - 5 Weeks
- Warranty
- 5 Years Project Warranty
Commercial
Project-ready details
Information your specification, BOQ and procurement teams need before requesting samples or quotations.
| Material | Ductile Iron / Stainless Steel SUS304 with Integrated Angular Joint |
|---|---|
| Size | DN80, DN100, DN150, DN200, DN250, DN300 |
| Thickness | PN16 / PN25 |
| Finish | Internal/External Epoxy Coating |
| Certificates | ISO 9001:2015, PPS Korea Innovative Prototype |
| MOQ | 1 Unit |
| Lead time | 3 - 5 Weeks |
| Price range | On project specification |
| Country of origin | South Korea |
| Warranty | 5 Years Project Warranty |
Technical
| bend angle nominal | 22.5 Degrees |
|---|---|
| additional dynamic rotation | ±10° secondary angular adjustment |
| working pressure rating | 1.6 MPa ~ 2.5 MPa |
| nominal diameter range | DN80 to DN300 |
| flow coefficient retention | > 95% full-bore hydraulic efficiency |
| sealing material | High-grade EPDM |
