WTPS · South Korea

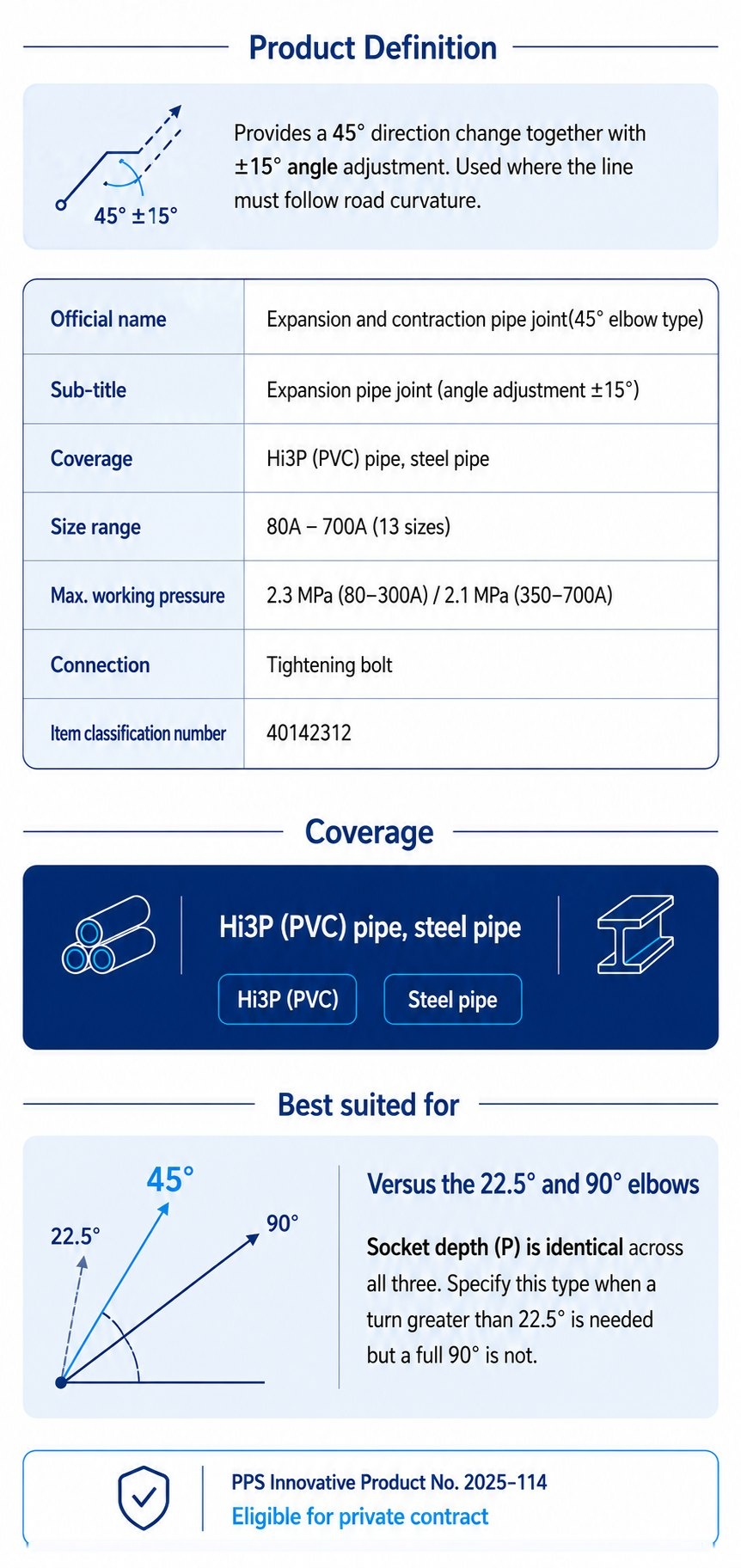

WTPS Expansion and Contraction Pipe Joint — 45° Elbow Type
Ductile Iron / Cast Steel with 45° Ball Joint Housing
Elevation transitions in basement MEP plant roomsMedium angle road curve routingSubstation and transformer cooling pipe transitionsRaw water intake pipelines
Quick facts
- Country of origin
- South Korea
- Size
- DN80, DN100, DN150, DN200, DN250, DN300
- Thickness
- PN16 / PN25
- Finish
- Fusion Bonded Epoxy
- MOQ
- 1 Unit
- Lead time
- 3 - 5 Weeks
- Warranty
- 5 Years Project Warranty
Commercial
Project-ready details
Information your specification, BOQ and procurement teams need before requesting samples or quotations.
| Material | Ductile Iron / Cast Steel with 45° Ball Joint Housing |
|---|---|
| Size | DN80, DN100, DN150, DN200, DN250, DN300 |
| Thickness | PN16 / PN25 |
| Finish | Fusion Bonded Epoxy |
| Certificates | ISO 9001:2015, PPS Korea Innovative Prototype |
| MOQ | 1 Unit |
| Lead time | 3 - 5 Weeks |
| Price range | On project specification |
| Country of origin | South Korea |
| Warranty | 5 Years Project Warranty |
Technical
| bend angle nominal | 45 Degrees |
|---|---|
| additional dynamic rotation | ±10° multi-axis flexibility |
| working pressure rating | 1.6 MPa ~ 2.5 MPa |
| nominal diameter range | DN80 to DN300 |
| body material | Ductile Iron FCD450 |
| connection standard | Flanged KS/JIS 10K/20K or DIN PN16/25 |
