VIVA Stone Honeycomb Panels (HIVE by VIVA) — Technical Presentation & Concealed Fixing System
EN · v2026 Edition (28 Pages) · 6.6 MB · 24 thg 9, 2026
VIVA Composite Panel · India

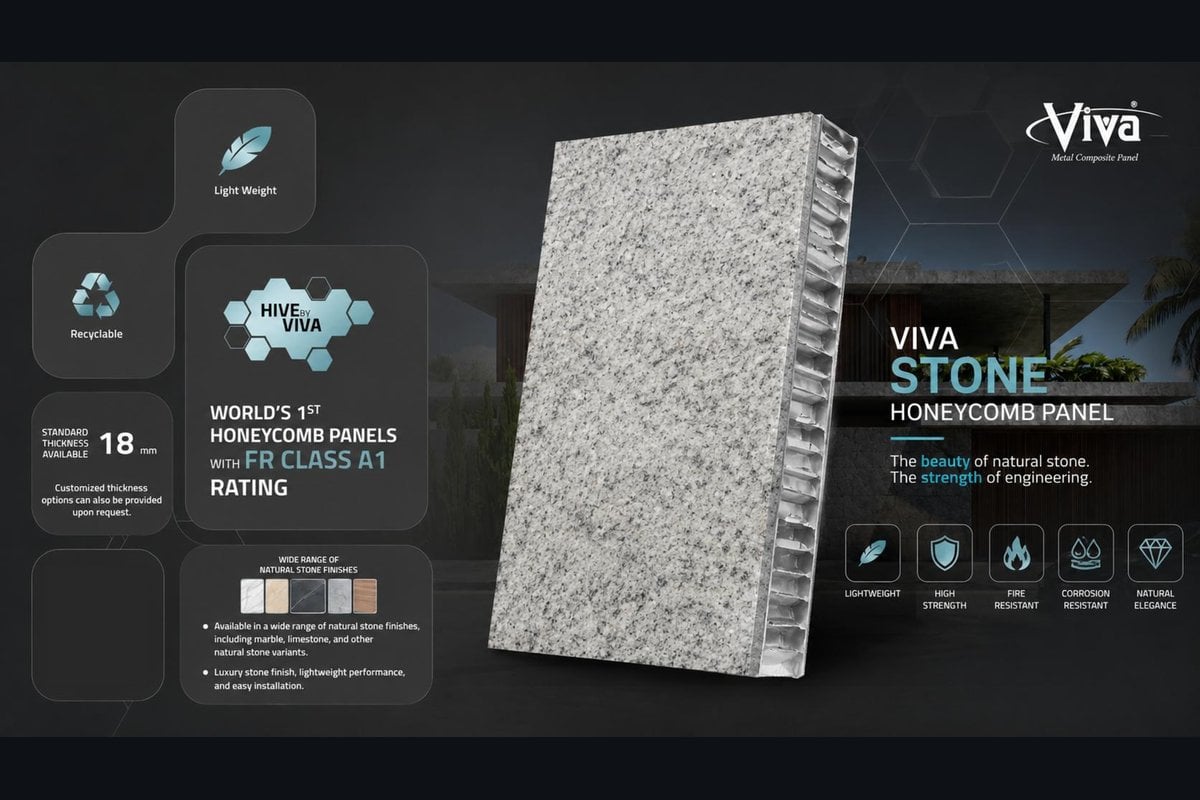

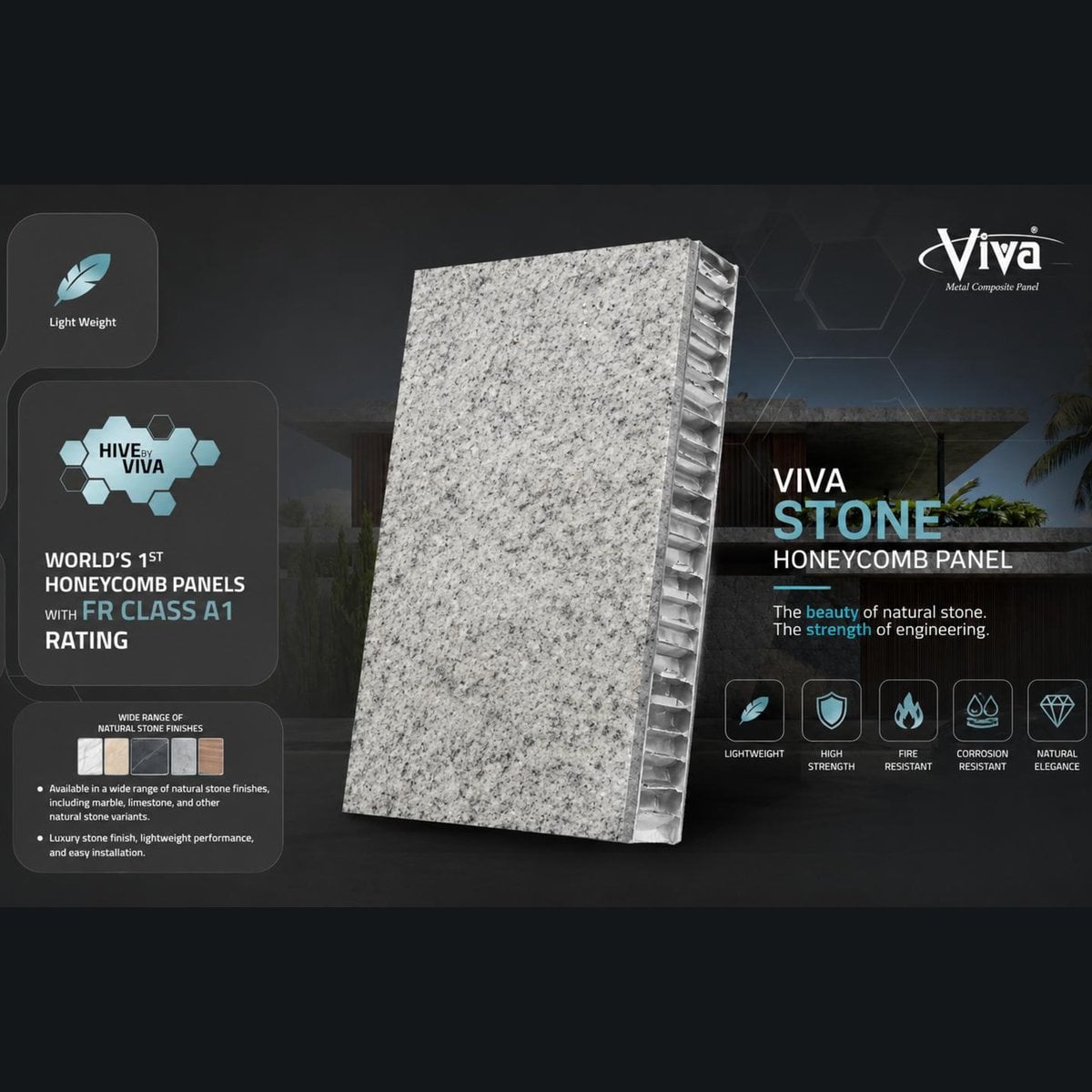

VIVA Stone Honeycomb Panel (HIVE by VIVA)

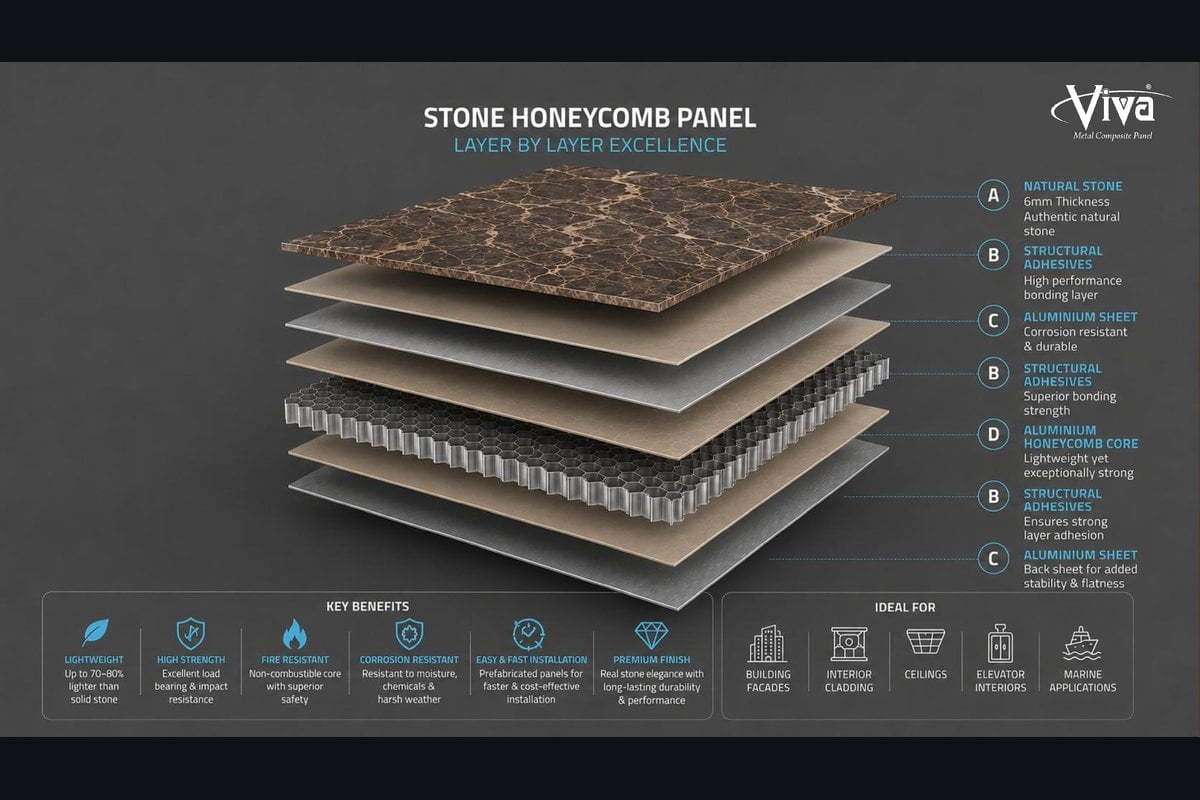

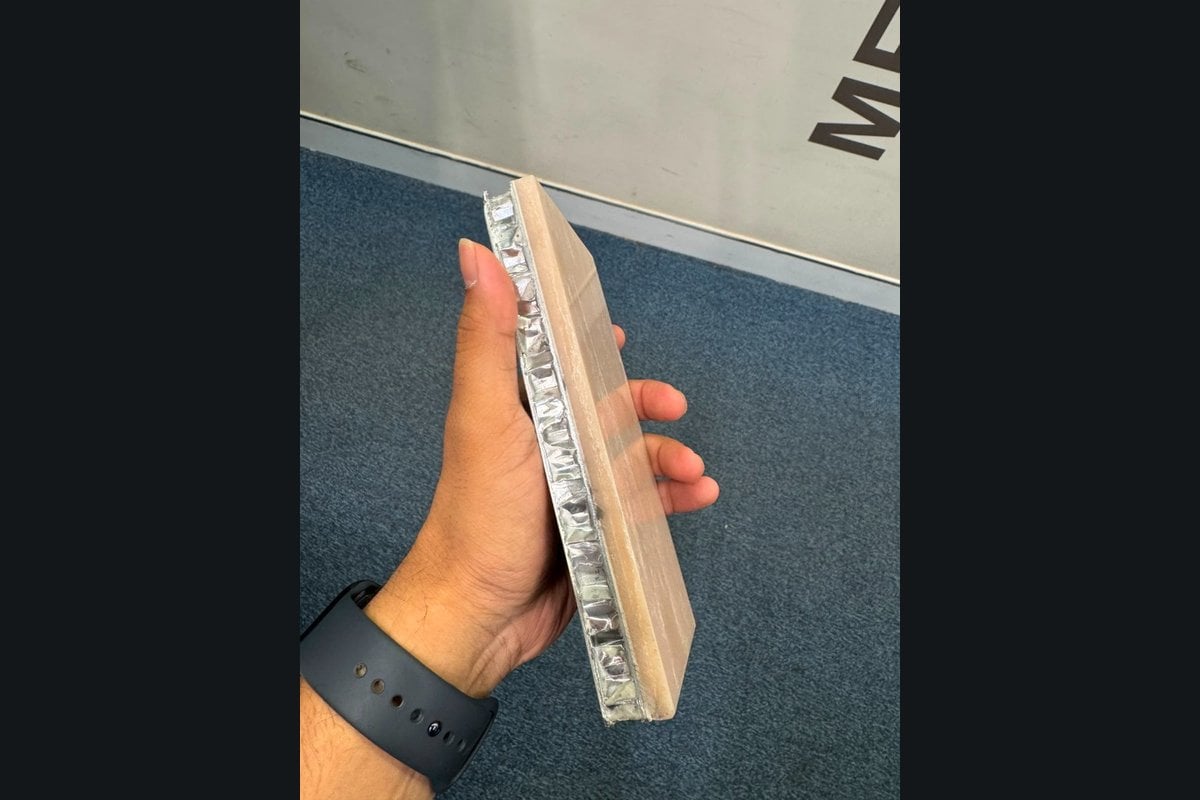

6mm Natural Stone Veneer + AA3003 Aluminium Skins (0.7–1.0mm) + Hexagonal Aluminium Honeycomb Core

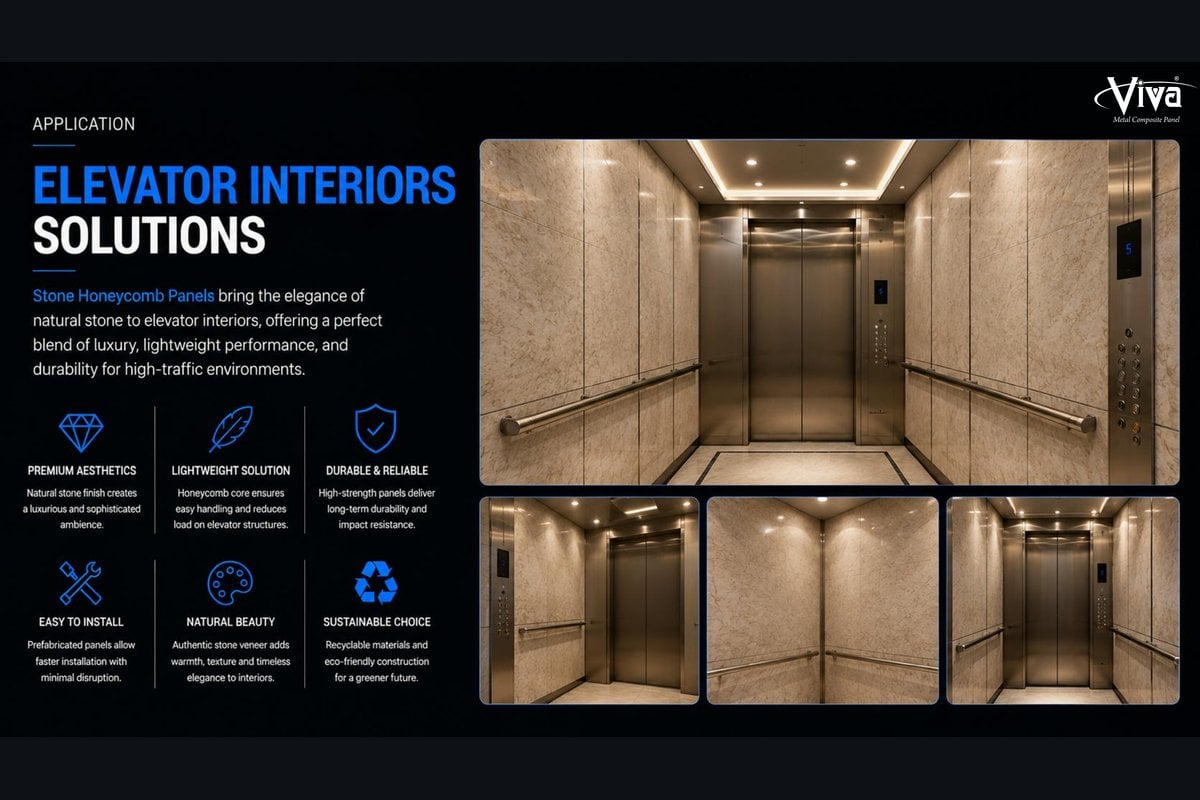

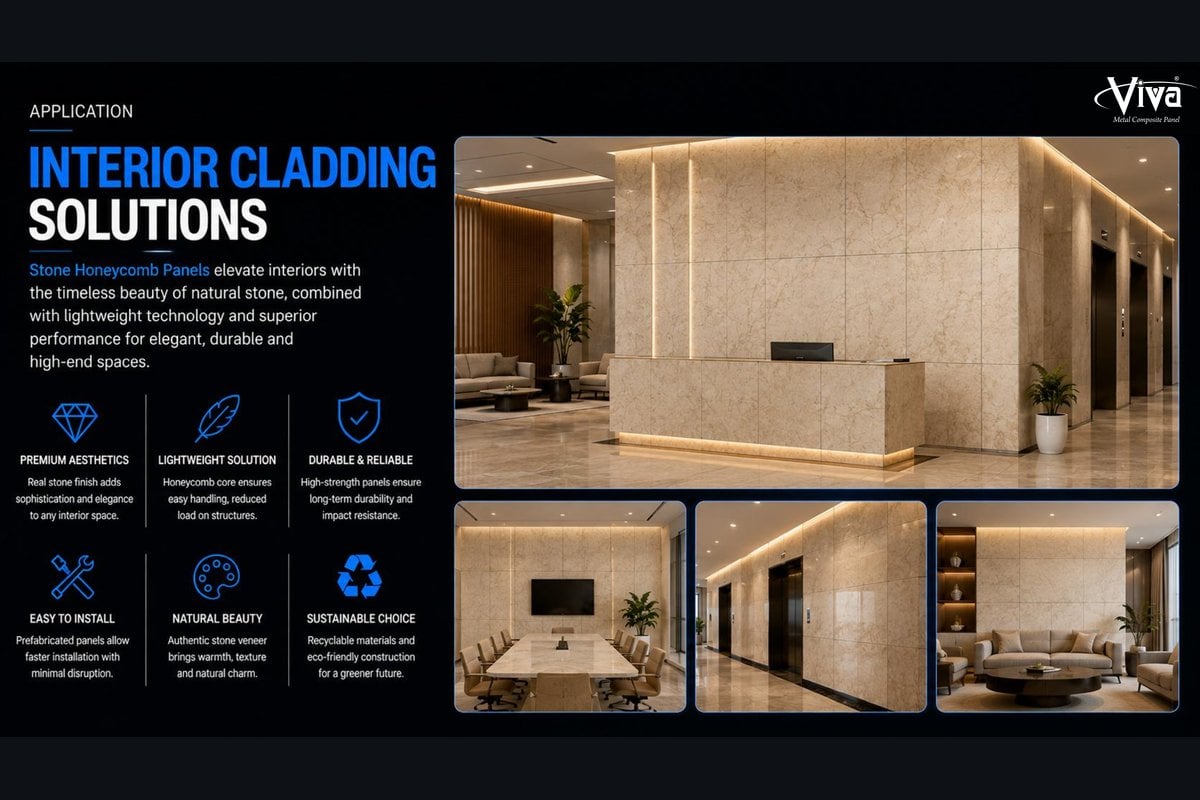

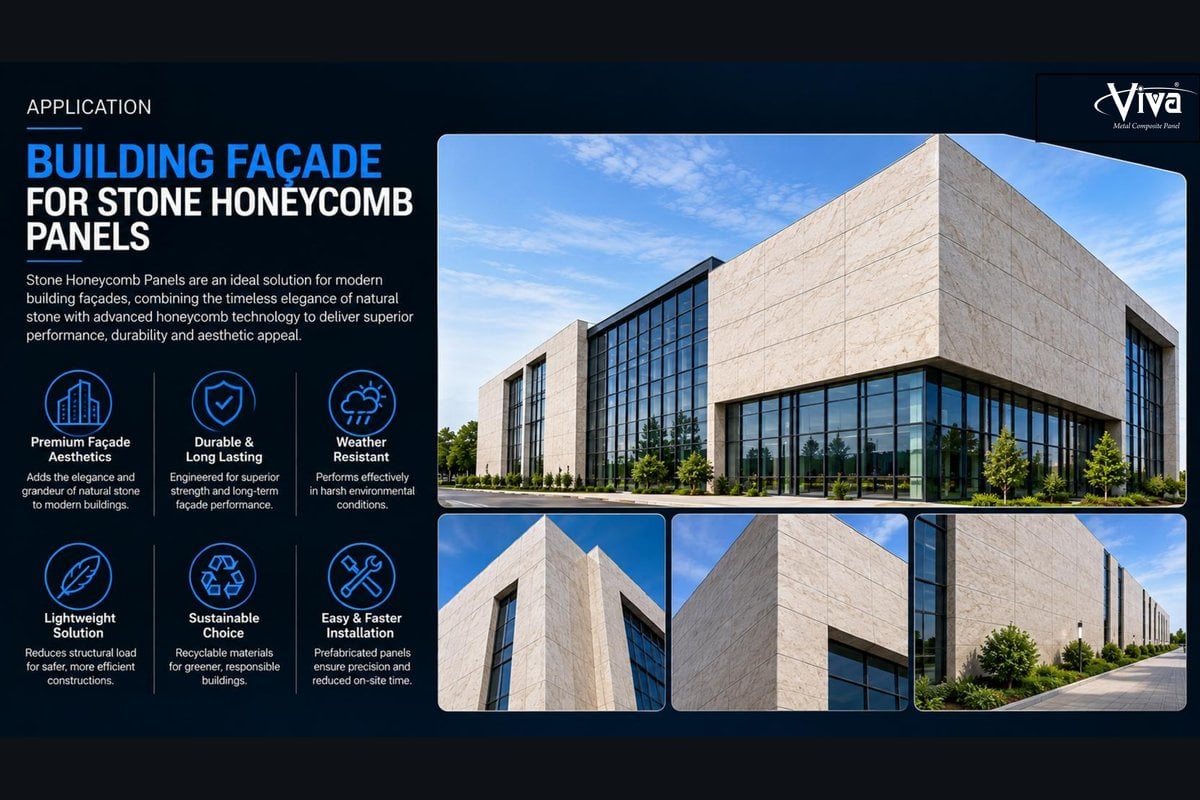

Ventilated building façadesHigh rise exterior stone claddingLuxury hotel & commercial lobby wallsElevator cabin interiorsColumns, pillars & soffit ceilingsCruise ship & marine interiors
Quick facts
- Country of origin
- India
- Size

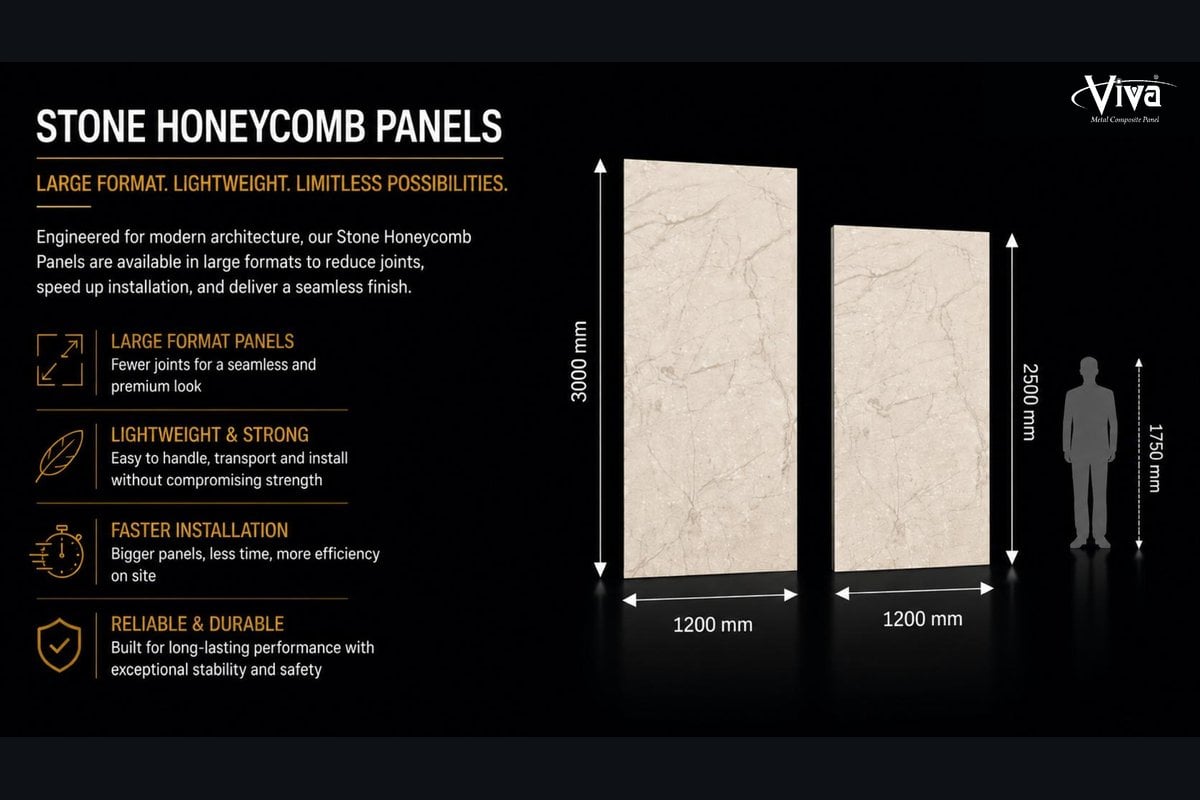

- 3000mm × 1200mm (standard large format), 2500mm × 1200mm (standard large format), Custom sizes up to 1500mm width × 3000mm length (project-specific)
- Thickness

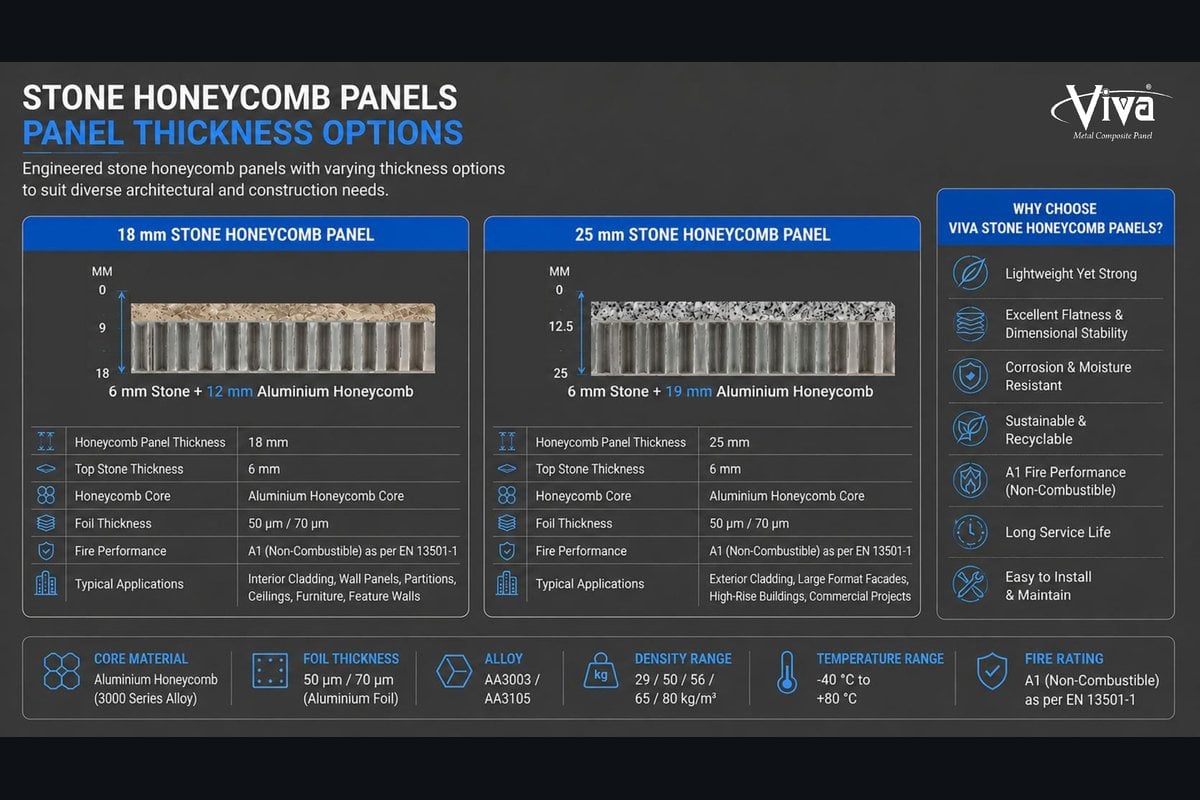

- 18mm standard (6mm Natural Stone + 12mm Aluminium Honeycomb), 25mm exterior heavy-duty (6mm Natural Stone + 19mm Aluminium Honeycomb), Custom thickness on request (stone veneer 3mm / 5mm / 6mm / 8mm / 10mm)
- Finish

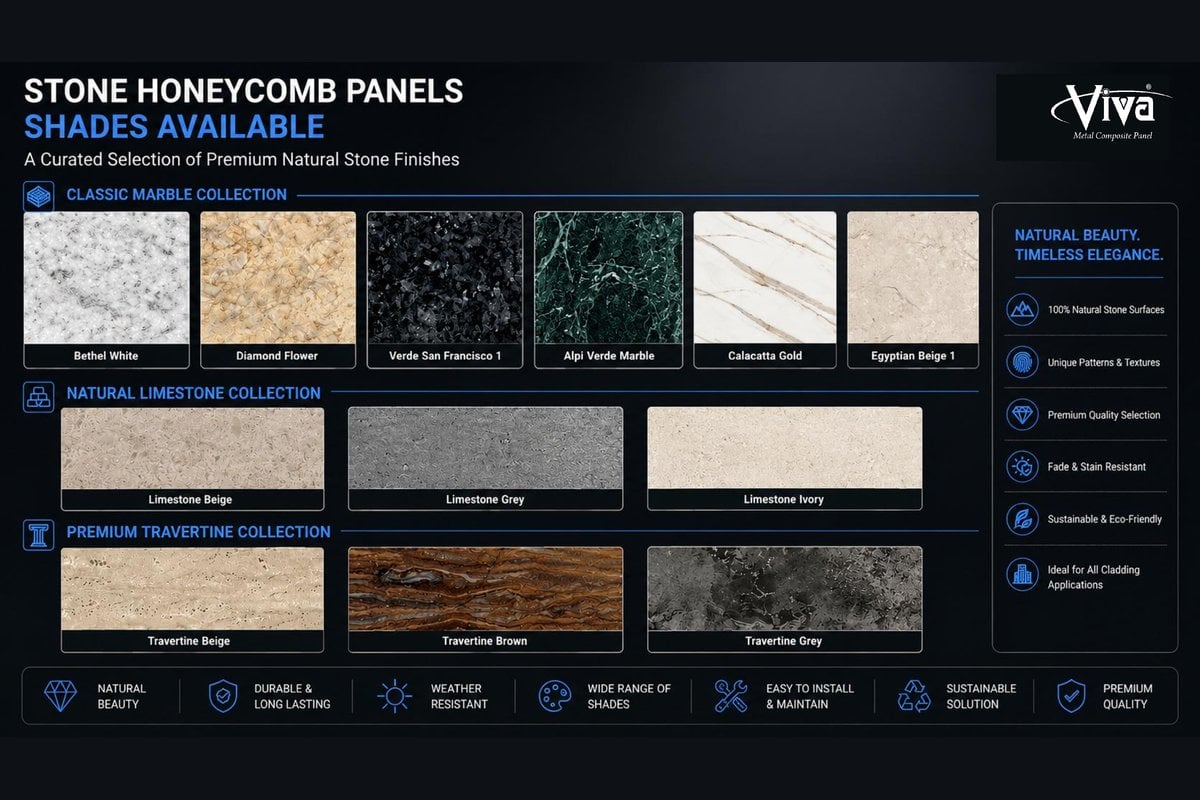

- Polished & Honed Natural Stone Surfaces, Classic Marble Collection (Bethel White, Diamond Flower, Verde San Francisco 1, Alpi Verde Marble, Calacatta Gold, Egyptian Beige 1), Natural Limestone Collection (Limestone Beige, Limestone Grey, Limestone Ivory), Premium Travertine Collection (Travertine Beige, Travertine Brown, Travertine Grey)
- MOQ
- On project request
- Lead time
- 4–6 weeks ex Gujarat (India)
- Warranty
- Project-specific weather & delamination warranty (based on stone type, panel construction, adhesive system & concealed installation method)
Full specification
Technical Data Sheet
The complete manufacturer specification for VIVA Stone Honeycomb Panel (HIVE by VIVA). Provided directly by the brand and verified by HIASHI.
Technical Data Sheet
VIVA Stone Honeycomb Panel (HIVE by VIVA) · PDF · 6.6 MB · 28 pages
Commercial
Project-ready details
Information your specification, BOQ and procurement teams need before requesting samples or quotations.
| Material | 6mm Natural Stone Veneer + AA3003 Aluminium Skins (0.7–1.0mm) + Hexagonal Aluminium Honeycomb Core |
|---|---|
| Indoor / outdoor | Indoor & Outdoor |
| Size | 3000mm × 1200mm (standard large format), 2500mm × 1200mm (standard large format), Custom sizes up to 1500mm width × 3000mm length (project-specific) |
| Thickness | 18mm standard (6mm Natural Stone + 12mm Aluminium Honeycomb), 25mm exterior heavy-duty (6mm Natural Stone + 19mm Aluminium Honeycomb), Custom thickness on request (stone veneer 3mm / 5mm / 6mm / 8mm / 10mm) |
| Finish | Polished & Honed Natural Stone Surfaces, Classic Marble Collection (Bethel White, Diamond Flower, Verde San Francisco 1, Alpi Verde Marble, Calacatta Gold, Egyptian Beige 1), Natural Limestone Collection (Limestone Beige, Limestone Grey, Limestone Ivory), Premium Travertine Collection (Travertine Beige, Travertine Brown, Travertine Grey) |
| Certificates | EN 13501-1 Class A1, ASTM C393, ASTM C365, ASTM D1876, DIN 53293, ASTM C518, ASTM C1363, ASTM D696, ISO 9001:2015 |
| MOQ | On project request |
| Lead time | 4–6 weeks ex Gujarat (India) |
| Price range | On request — engineered lightweight stone façade solution |
| Country of origin | India |
| Warranty | Project-specific weather & delamination warranty (based on stone type, panel construction, adhesive system & concealed installation method) |

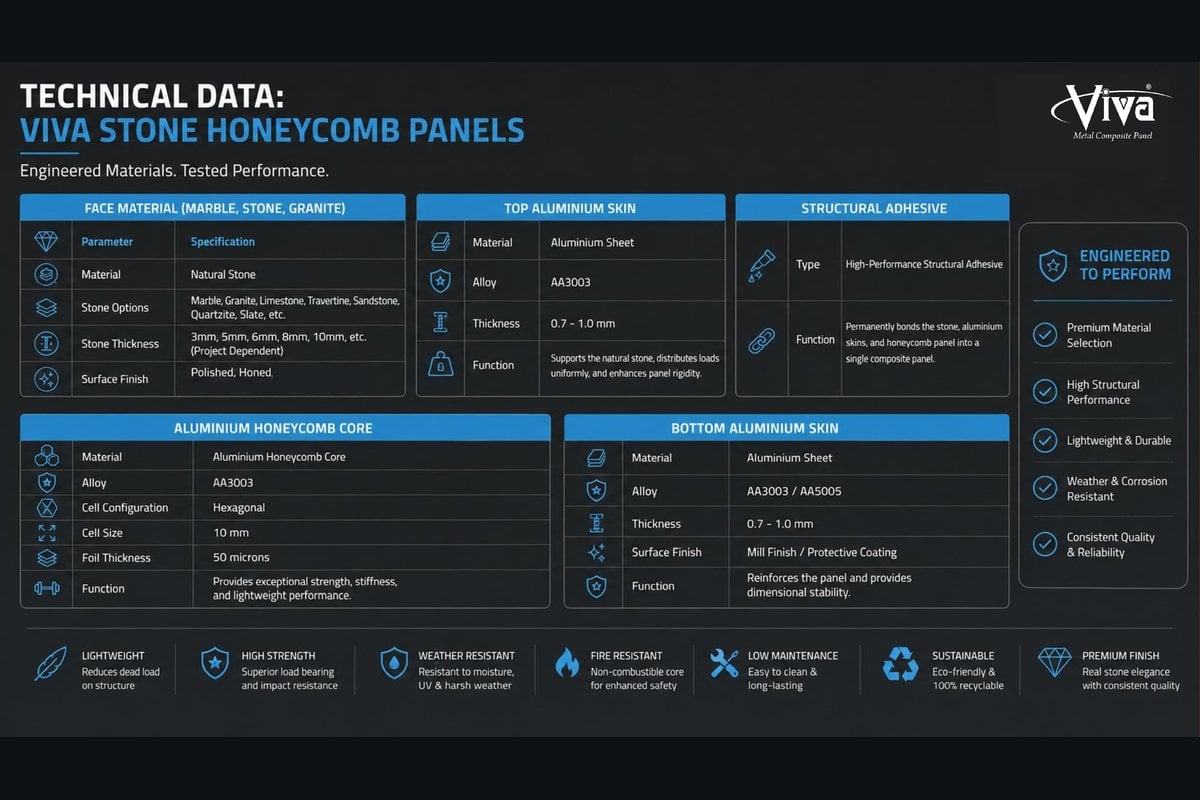

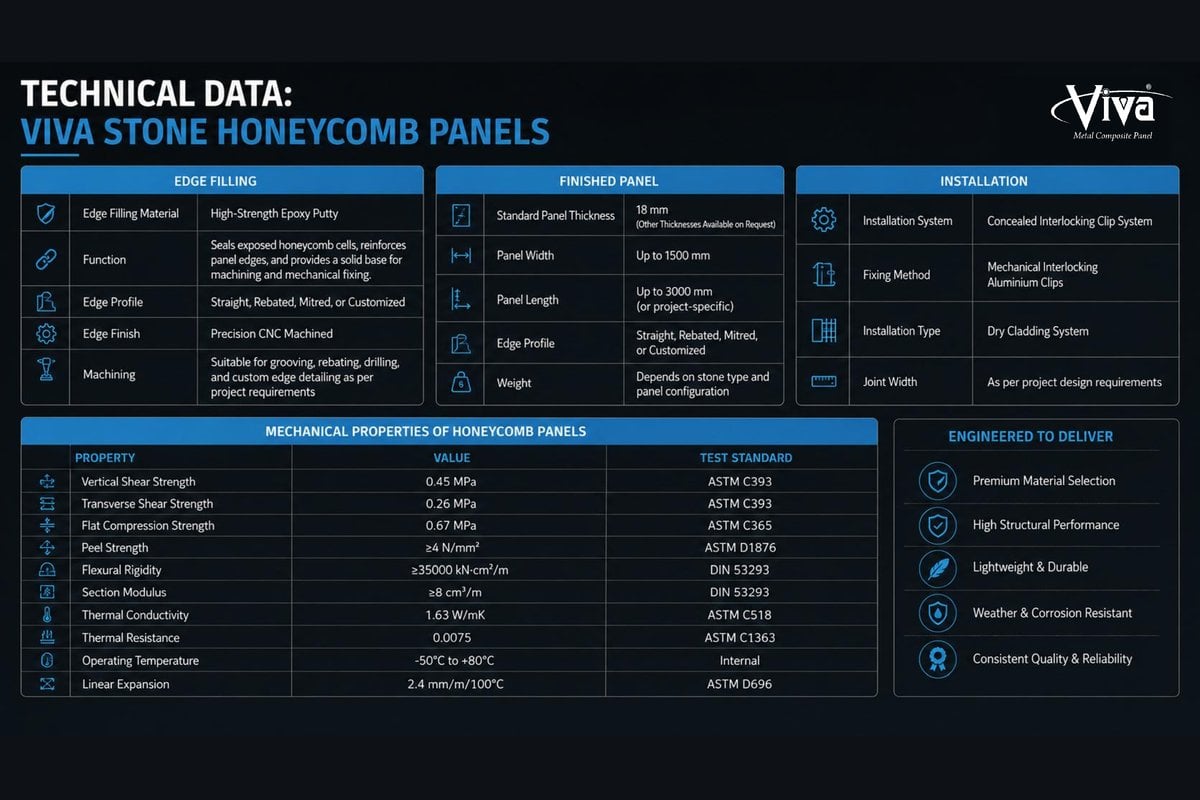

Technical
| Fire Rating | EN 13501-1 Class A1 (Non-Combustible) |
|---|---|

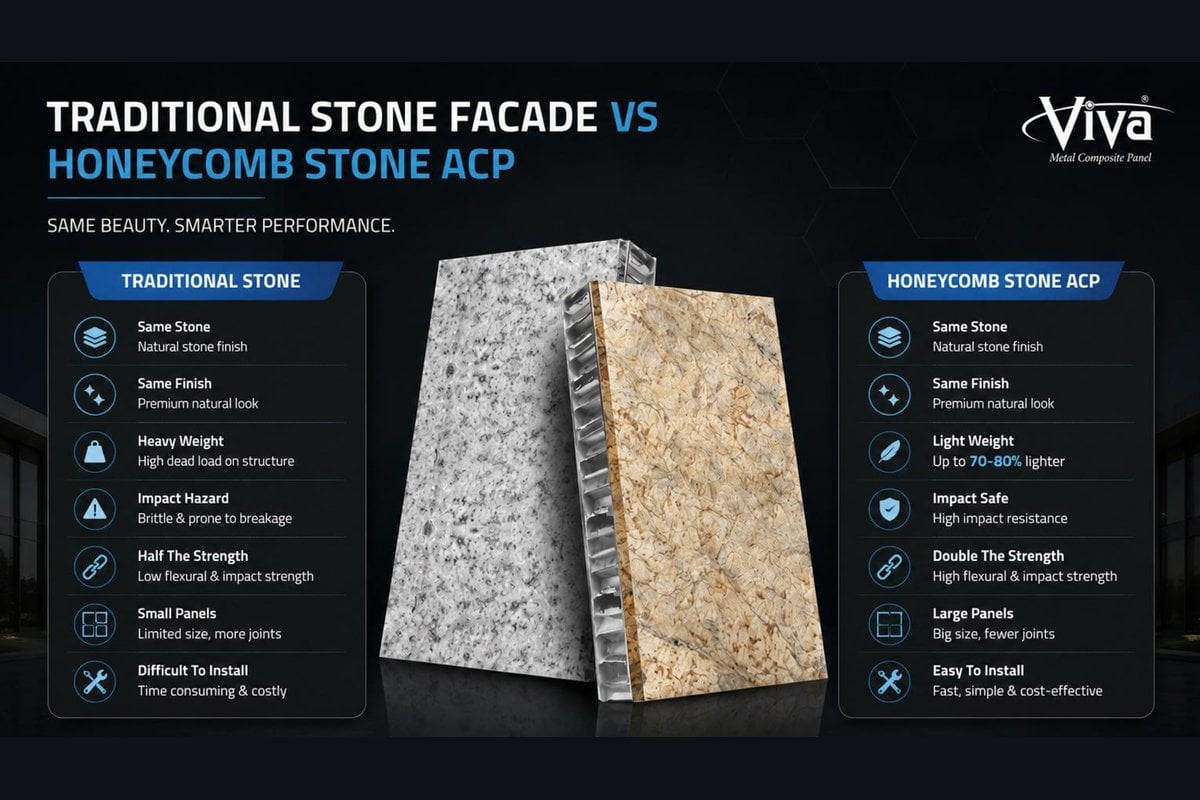

| weight reduction | 75–80% lighter than conventional 18–20mm solid stone cladding |
| face stone material | 100% Authentic Natural Stone (Marble, Granite, Limestone, Travertine, Sandstone, Quartzite, Slate) — 6mm standard |
| aluminium skins | Top AA3003 (0.7–1.0mm) + Bottom AA3003 / AA5005 (0.7–1.0mm) with high-performance structural adhesive |
| honeycomb core | Hexagonal Aluminium Honeycomb Core (AA3003 / AA3105), 10mm cell size, 50µm / 70µm foil, density 29 / 50 / 56 / 65 / 80 kg/m³ |

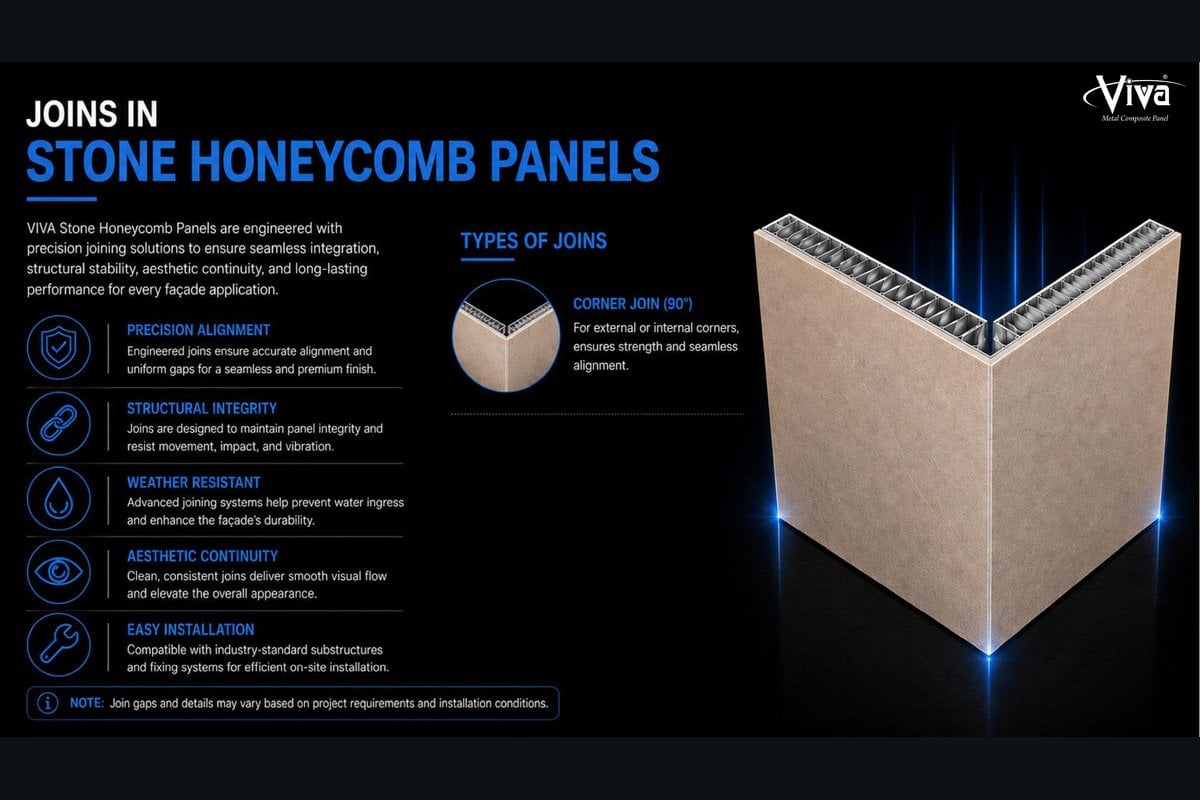

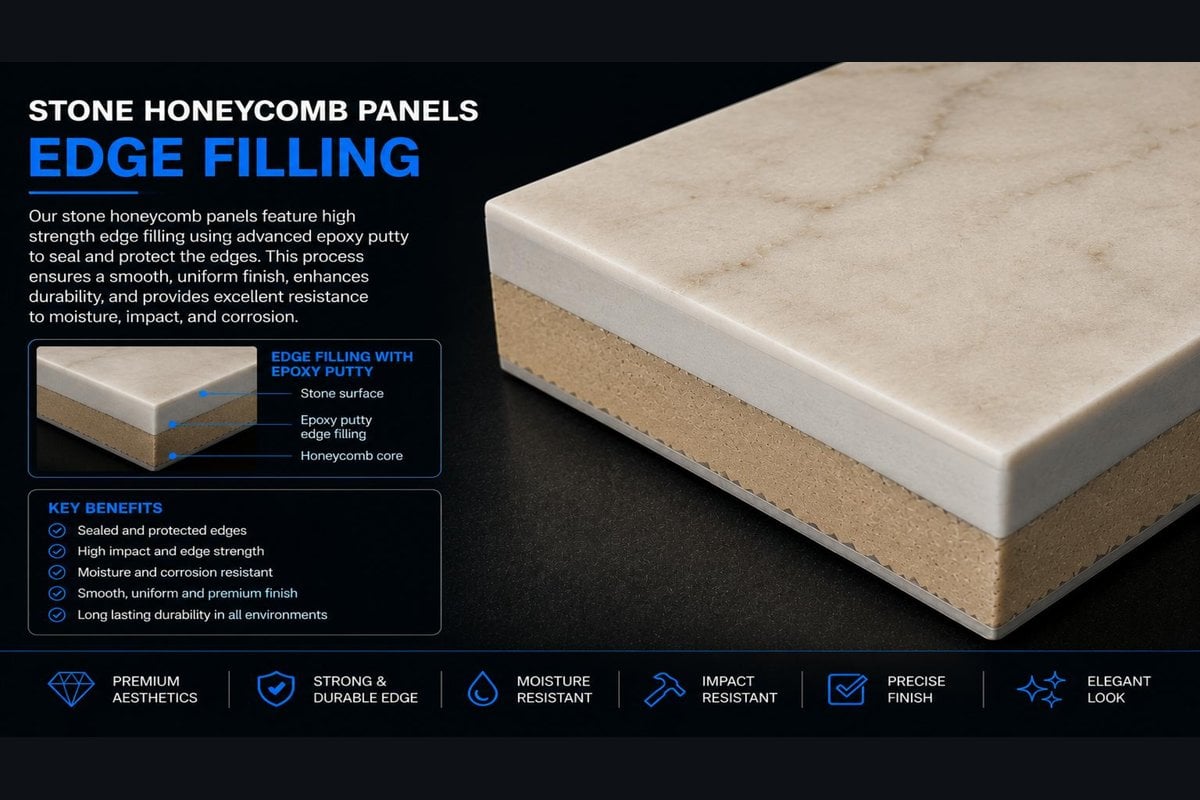

| edge treatment | High-strength Epoxy Putty edge filling; CNC straight, rebated, mitred & 90° corner joins |

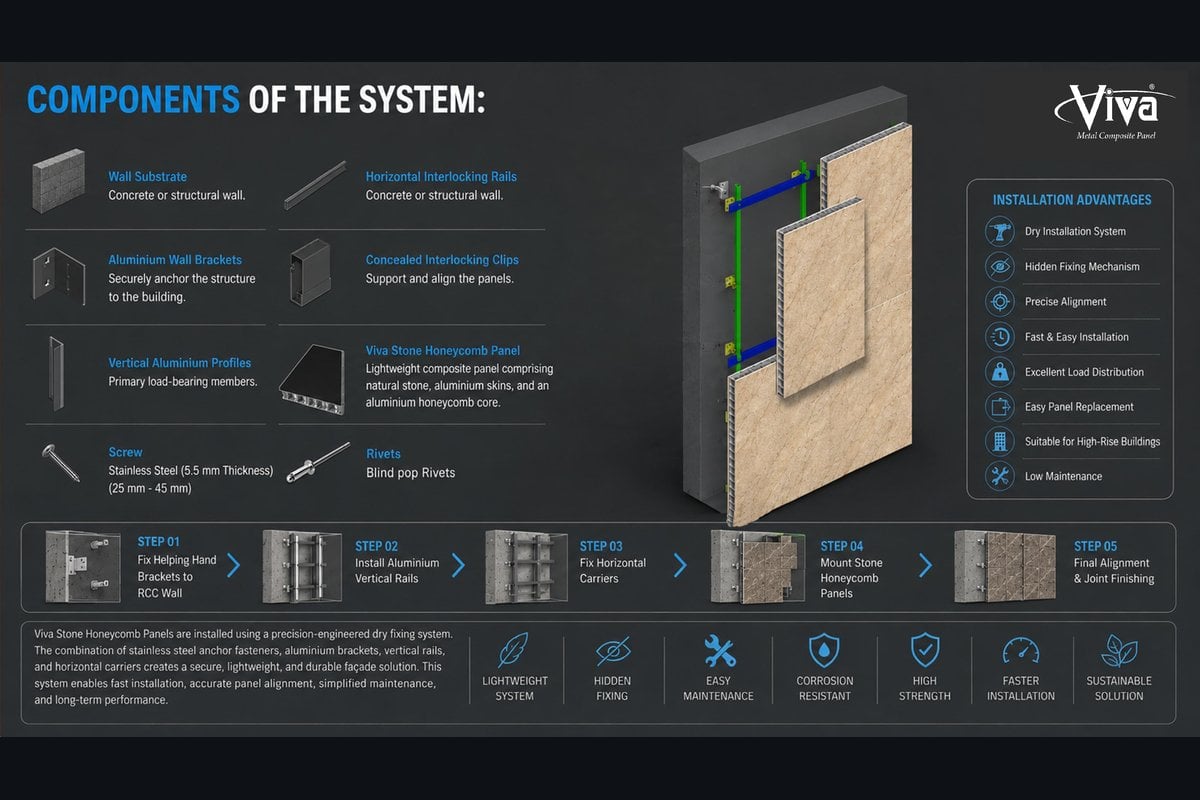

| fixing system | Dedicated Concealed Interlocking Aluminium Clip Dry Cladding System (5-step mechanical fixing, no glue/grout) |
| vertical shear strength | 0.45 MPa (ASTM C393) |
| transverse shear strength | 0.26 MPa (ASTM C393) |
| flat compression strength | 0.67 MPa (ASTM C365) |
| peel strength | ≥ 4 N/mm² (ASTM D1876) |
| flexural rigidity | ≥ 35000 kN·cm²/m | Section Modulus ≥ 8 cm³/m (DIN 53293) |
| thermal performance | Thermal Conductivity 1.63 W/mK (ASTM C518) | Thermal Resistance 0.0075 (ASTM C1363) |
| operating temperature | -50°C to +80°C | Linear Thermal Expansion 2.4 mm/m/100°C (ASTM D696) |
