Datasheet
ASD Exterior Solutions Technical Datasheet
EN · v2025 · 58.4 KB · 1 thg 1, 2025
ASD Laminat · Turkey
ASD Exterior Solutions (Sphere)
Exterior-grade HPL compact panel

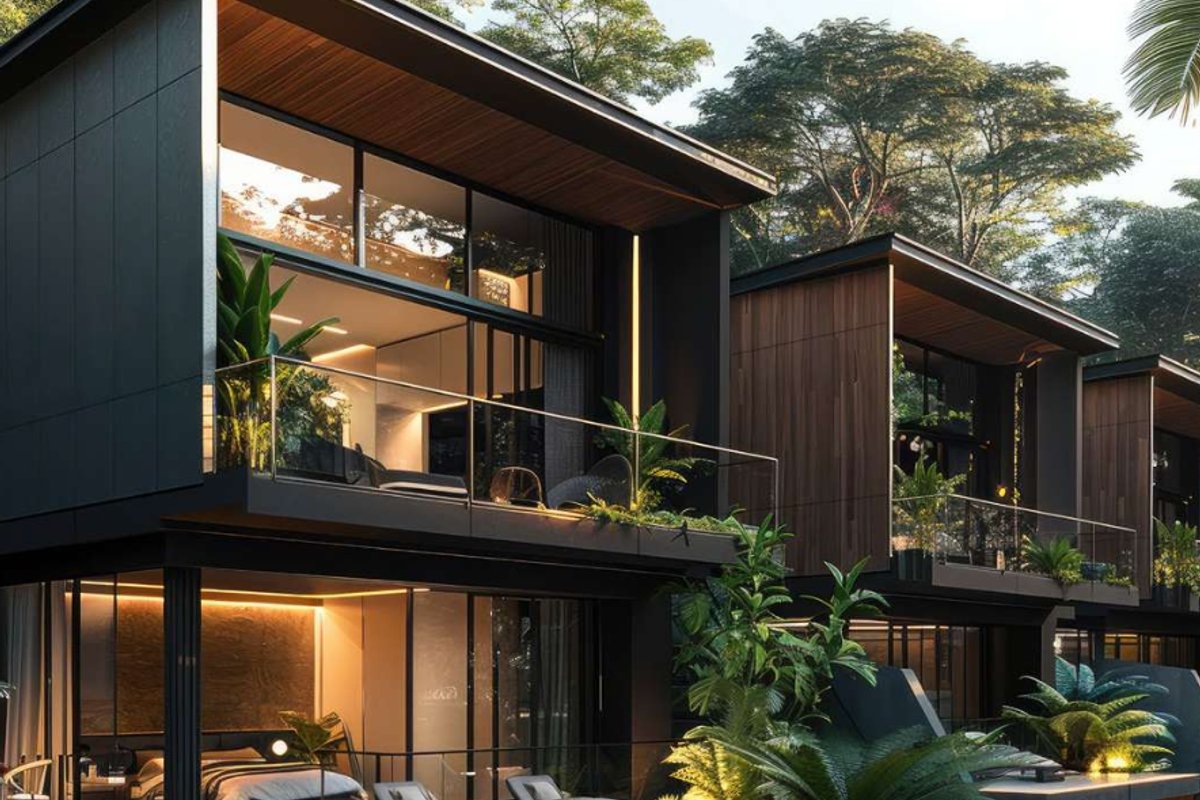

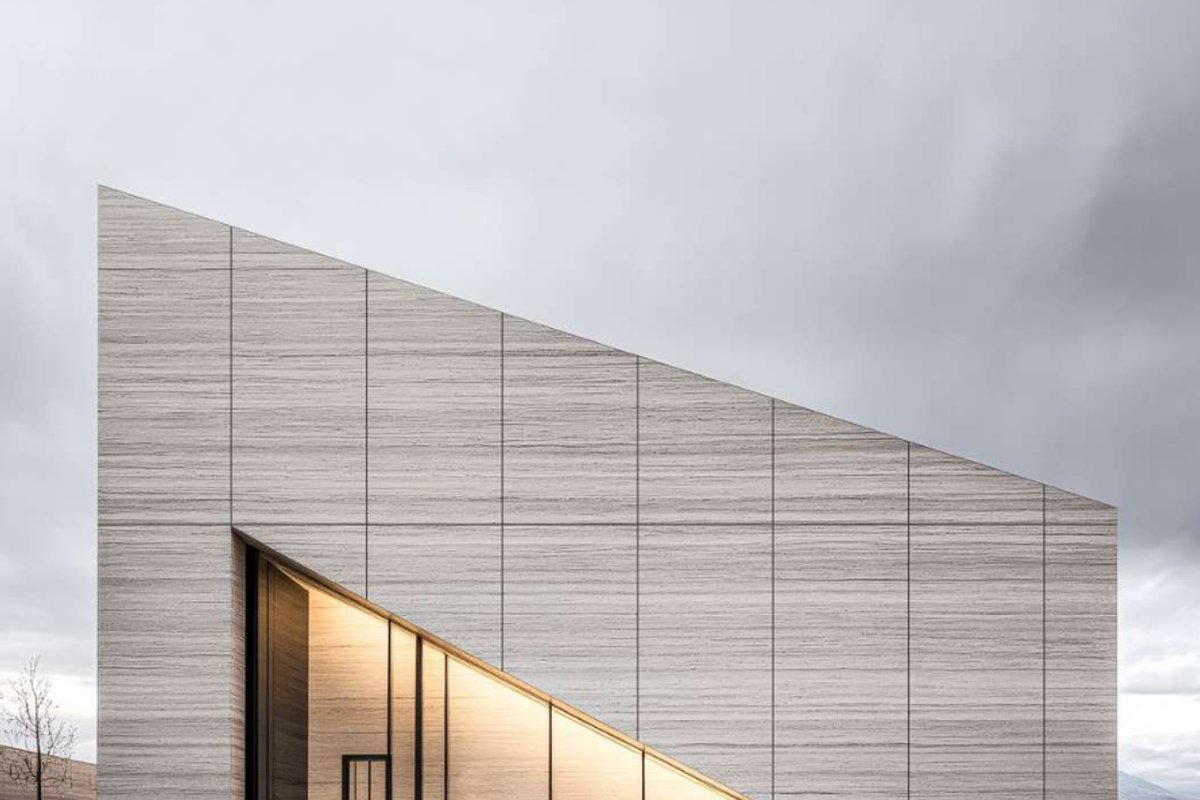

Ventilated façade claddingBalcony claddingOutdoor furnitureSoffits and eaves
Quick facts
- Country of origin
- Turkey
- Size
- 2800 x 1300 mm, 3050 x 1300 mm, 3660 x 1540 mm, 4100 x 1300 mm, 4100 x 1860 mm

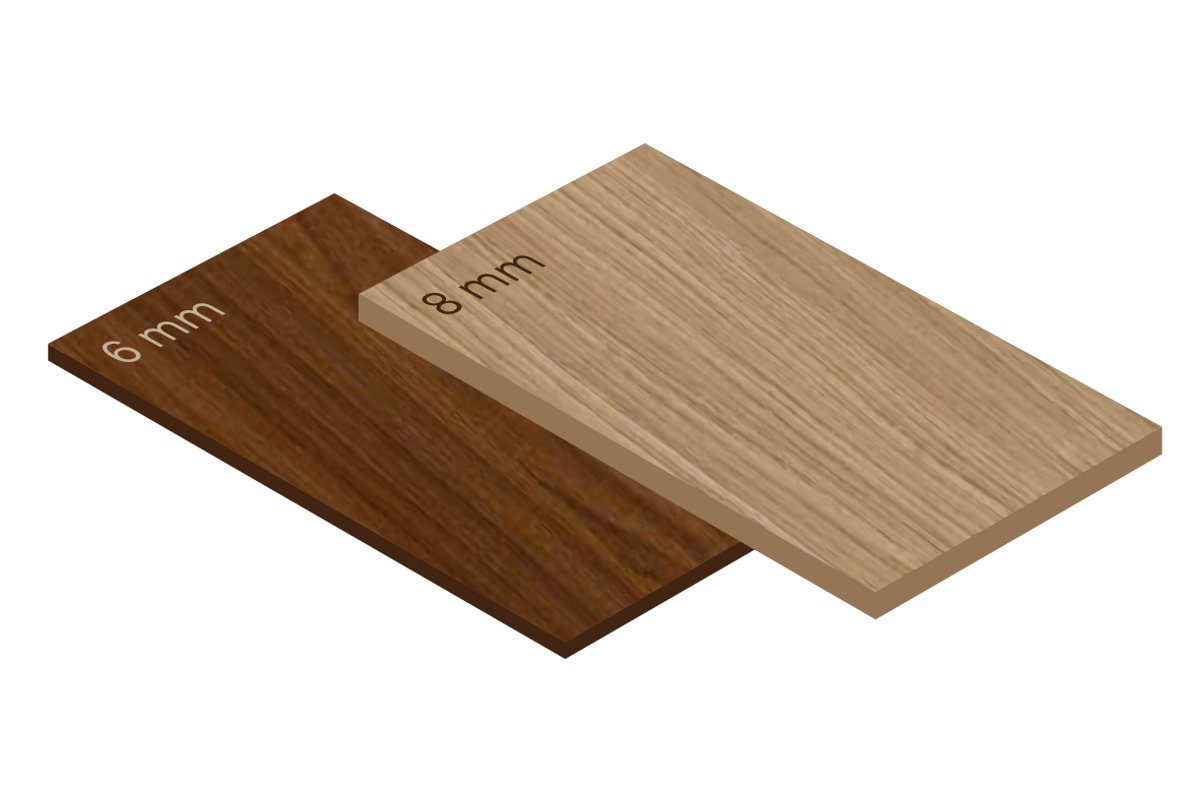

- Thickness
- 4 mm, 6 mm, 8 mm, 10 mm, 12 mm
- Finish
- Matte, Satin, Textured
- MOQ
- 100 m²
- Lead time
- 6–8 weeks ex Turkey
- Warranty
- 10 years on performance
Commercial
Project-ready details
Information your specification, BOQ and procurement teams need before requesting samples or quotations.
| Material | Exterior-grade HPL compact panel |
|---|---|
| Indoor / outdoor | Outdoor |
| Size | 2800 x 1300 mm, 3050 x 1300 mm, 3660 x 1540 mm, 4100 x 1300 mm, 4100 x 1860 mm |
| Thickness | 4 mm, 6 mm, 8 mm, 10 mm, 12 mm |
| Finish | Matte, Satin, Textured |
| Certificates | EN 13501-1 Class B-s2,d0, FSC CoC certified, CE Marking, Eurofins E1 emission certified |
| MOQ | 100 m² |
| Lead time | 6–8 weeks ex Turkey |
| Country of origin | Turkey |
| Warranty | 10 years on performance |
Technical
| Fire Rating | B-s2,d0 / D-s2,d0 (EN 13501-1) |
|---|---|
| density g cm3 | 1.35 |
| flexural strength mpa | 80 |
| flexural modulus mpa | 9000 |
| formaldehyde emission | E1 (EN 717-2) |
Technical Documents
Specifications, certificates, installation & maintenance
Catalogue
ASD Exterior Solutions Catalogue
EN · v2025 · 4 MB · 1 thg 1, 2025
Installation Guide
ASD Exterior Sphere Facade Application Guide
EN · v2025 · 1.7 MB · 1 thg 1, 2025
