Plasmace HVPS30P LF Plasma Power Supply User Manual
OTHER · v2403 · 4 MB · 19 thg 3, 2024
Plasmace Inc. · South Korea

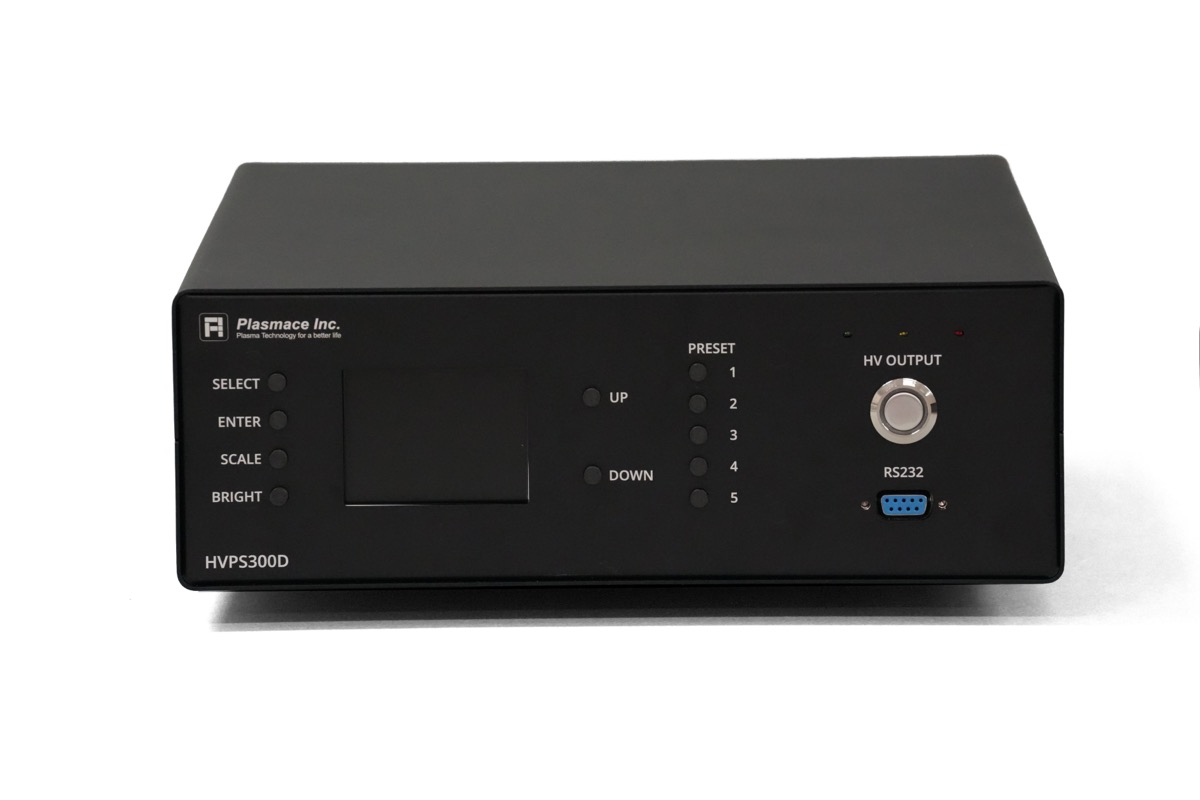

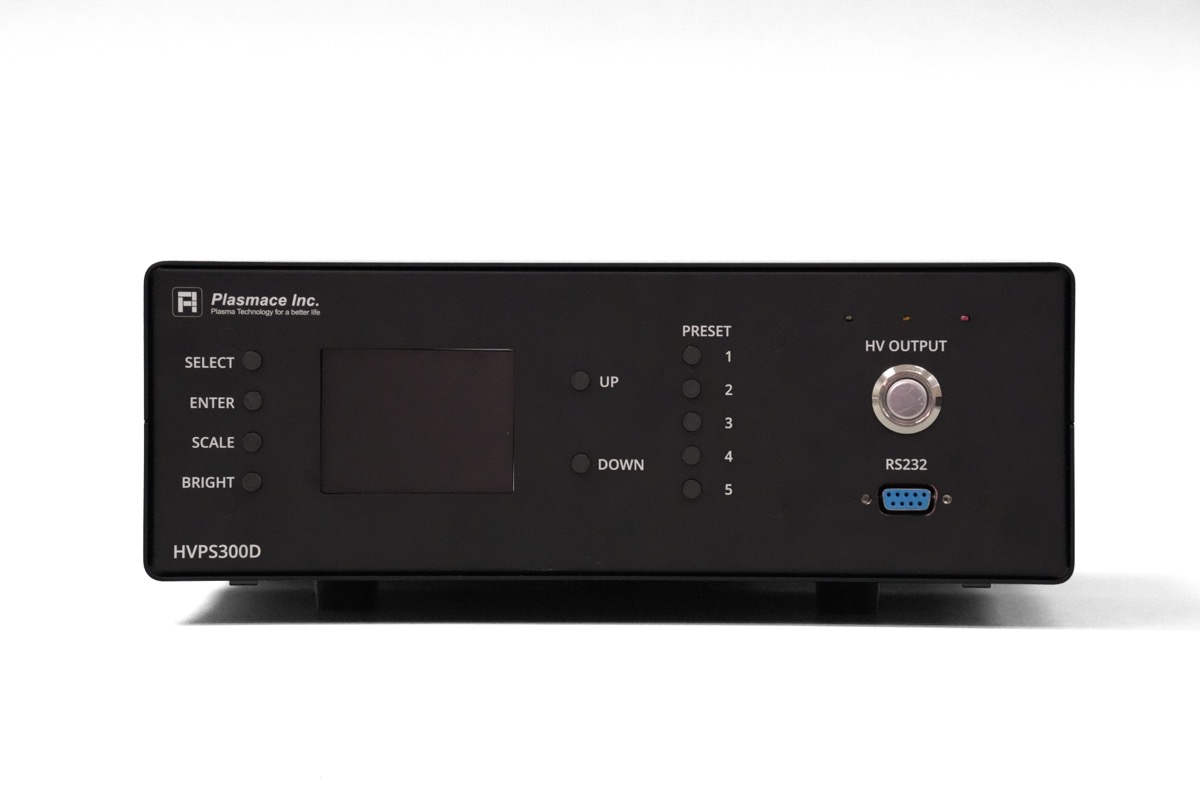

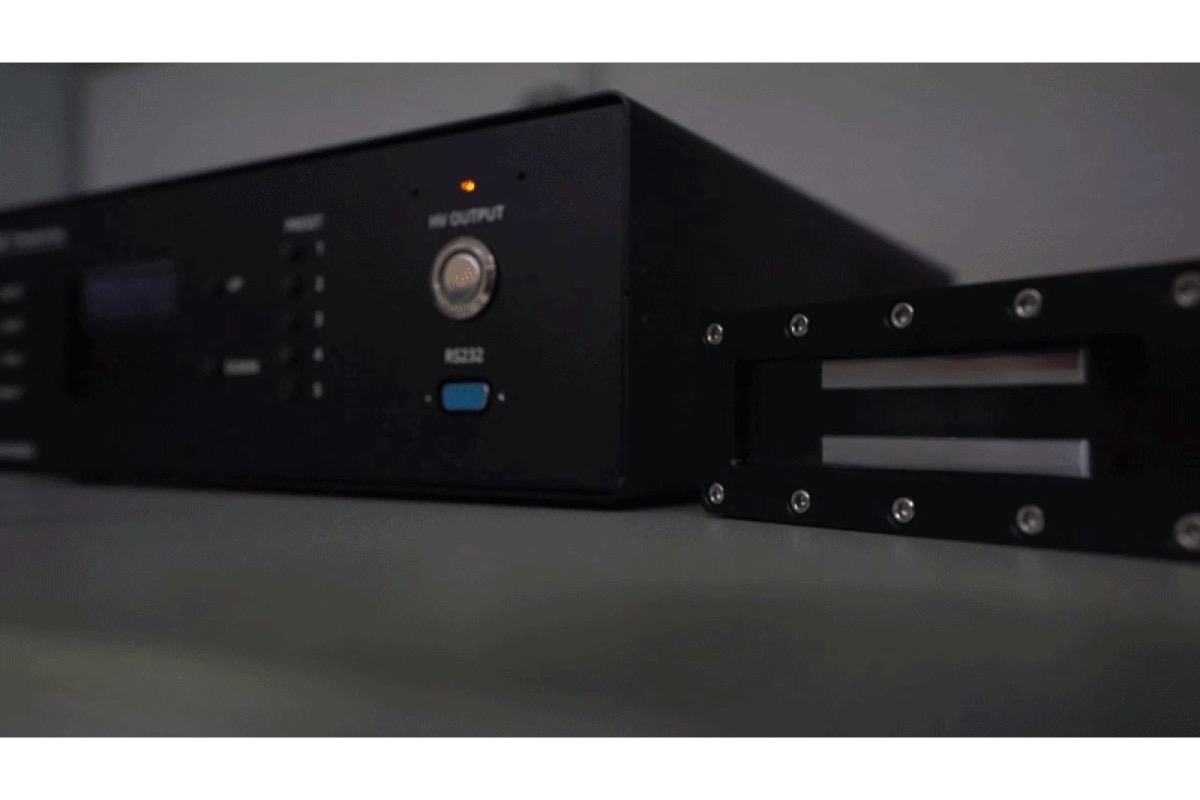

HVPS300D Low-Frequency High-Voltage Plasma Power Supply
High-Efficiency H-Bridge Inverter High-Voltage LF Power Supply for DBD Systems

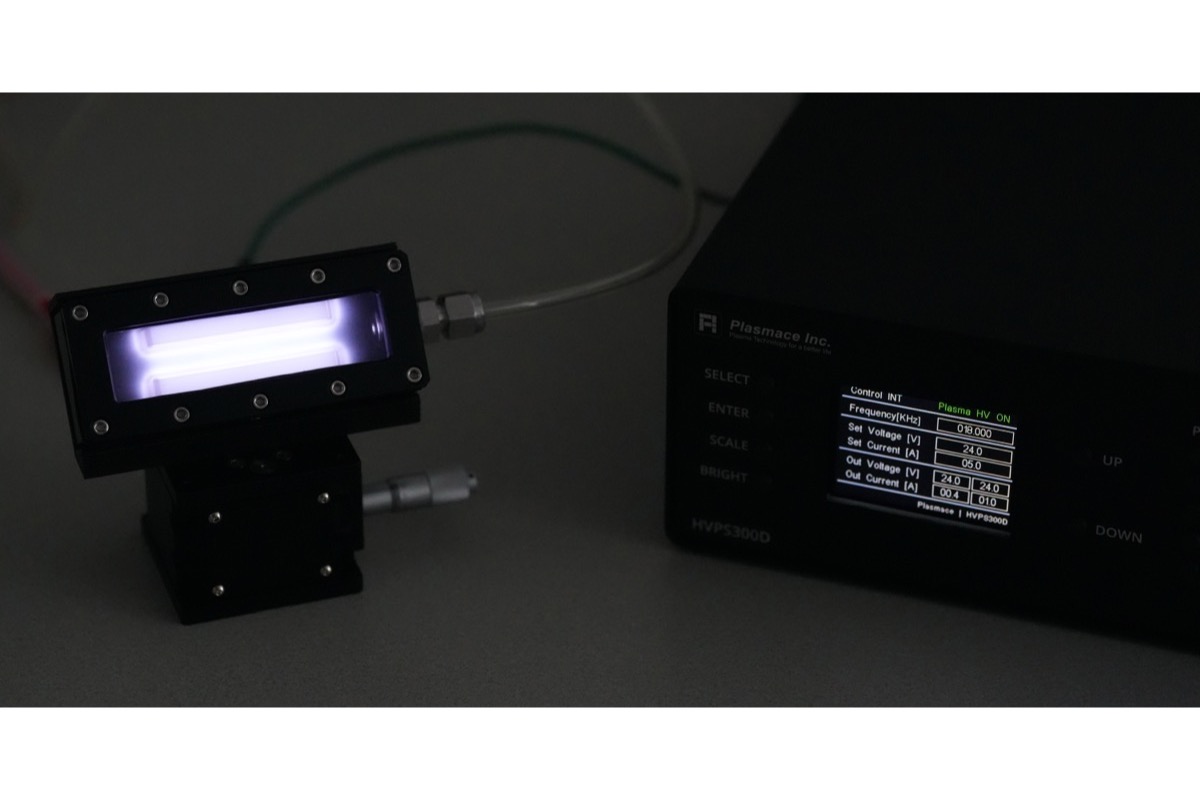

Cold plasma water treatment generator drivingAPP surface modification reactor drivingPlasma R&D laboratory discharge power sourceHigh frequency dielectric barrier power driver
Quick facts
- Country of origin
- South Korea
- Size
- 290 * 320 * 100 mm (L*W*H), Weight: 4.3 kg
- Thickness
- Compact Desktop Enclosure
- Finish
- Durable Textured Metal Casing with High-Voltage Terminal Blocks
- MOQ
- 1 Unit
- Lead time
- 3 - 5 Weeks
- Warranty
- 1 Year Manufacturer Warranty
Commercial
Project-ready details
Information your specification, BOQ and procurement teams need before requesting samples or quotations.
| Material | High-Efficiency H-Bridge Inverter High-Voltage LF Power Supply for DBD Systems |
|---|---|
| Indoor / outdoor | Indoor |
| Size | 290 * 320 * 100 mm (L*W*H), Weight: 4.3 kg |
| Thickness | Compact Desktop Enclosure |
| Finish | Durable Textured Metal Casing with High-Voltage Terminal Blocks |
| Certificates | ISO 9001:2015, CE Declaration of Conformity, KC EMC Certification |
| MOQ | 1 Unit |
| Lead time | 3 - 5 Weeks |
| Price range | On request |
| Country of origin | South Korea |
| Warranty | 1 Year Manufacturer Warranty |
Technical
| input voltage | AC 220V, 50/60Hz |
|---|---|
| output voltage | Max 6 kVp-p (Peak-to-Peak) |
| frequency range | 10 kHz ~ 50 kHz H-Bridge Switching |
| power consumption max w | 300 |
| dimensions mm | 290 x 320 x 100 |
| weight kg | 4.3 |
| cooling | Internal forced air cooling with temperature protection |
