GKD Metal Mesh Ceilings at LAX Metro Transit Center: Engineering Softened Metal for a $1B Infrastructure Hub
Technical analysis of GKD OMEGA 1520 PC metal mesh ceiling at LAX Metro Transit Center Los Angeles: 1,400 custom-tailored panels, 51% open area, LEED Gold.
Can stainless steel wire be engineered to flow like soft silk across a major public infrastructure ceiling?
When designing a transit hub serving over 45,000 daily commuters, ceiling specifications must solve a complex engineering conflict: concealing thousands of meters of M&E/HVAC pipes and electrical conduits while maintaining ventilation, acoustic reverberation control, and a 100-year operational lifespan.

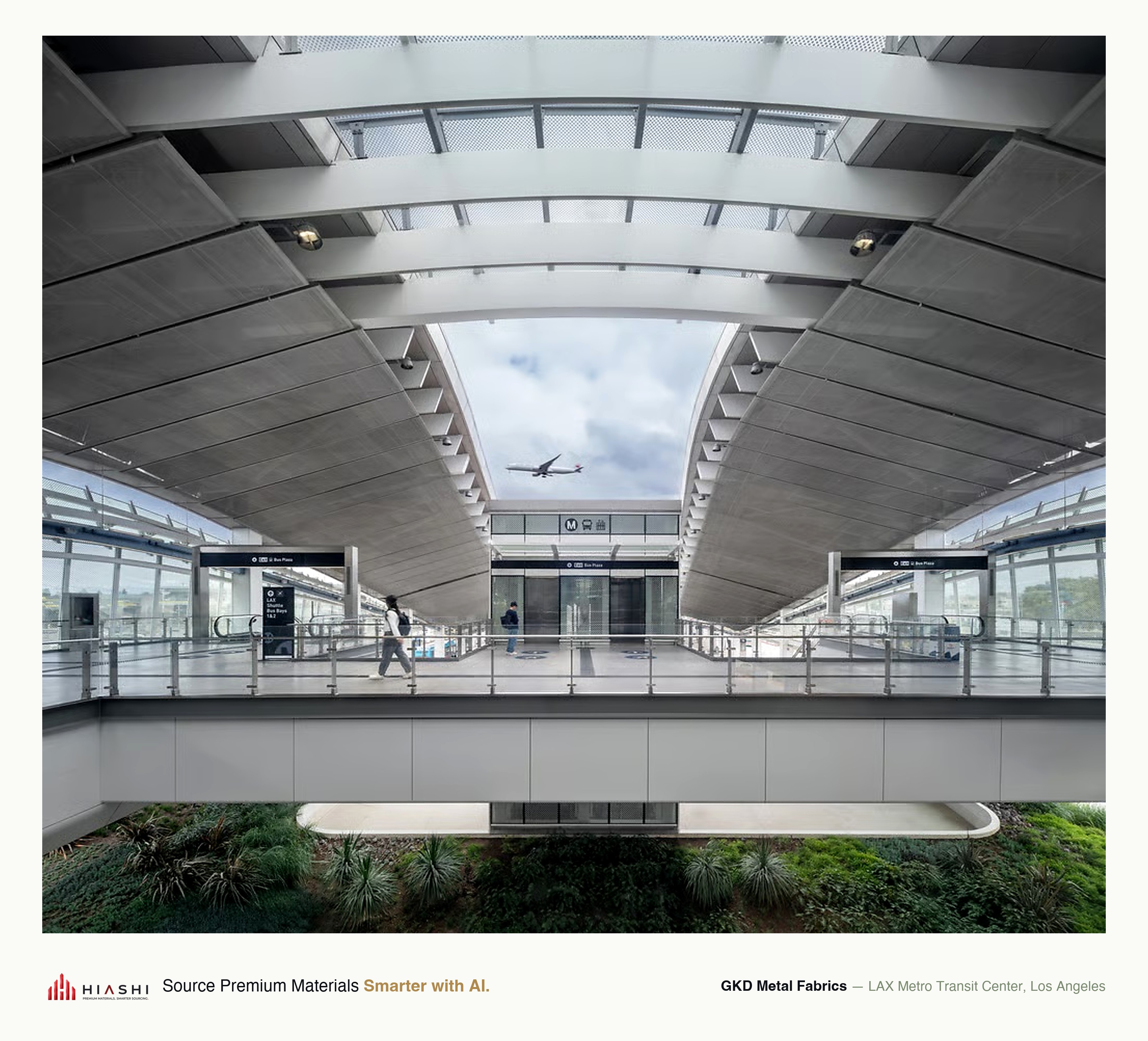

At the newly opened $1 Billion LAX Metro Transit Center in Los Angeles, joint design architects Grimshaw, Gruen Associates, and Arup answered this challenge with 1,400 custom-fabricated GKD OMEGA 1520 PC metal mesh ceiling panels.
60-Second Direct Answer
GKD OMEGA 1520 PC architectural mesh in T316L stainless steel delivers 51% Open Area for air circulation and acoustic absorption while completely concealing MEP infrastructure overhead. Its rigid woven panel design eliminates end-tensioning devices, reducing dead load on roof structures, offering 100-year marine corrosion resistance and contributing directly to LEED Gold certification.
1. A 6-Year Engineering & Fabrication Journey (2018 – 2024)

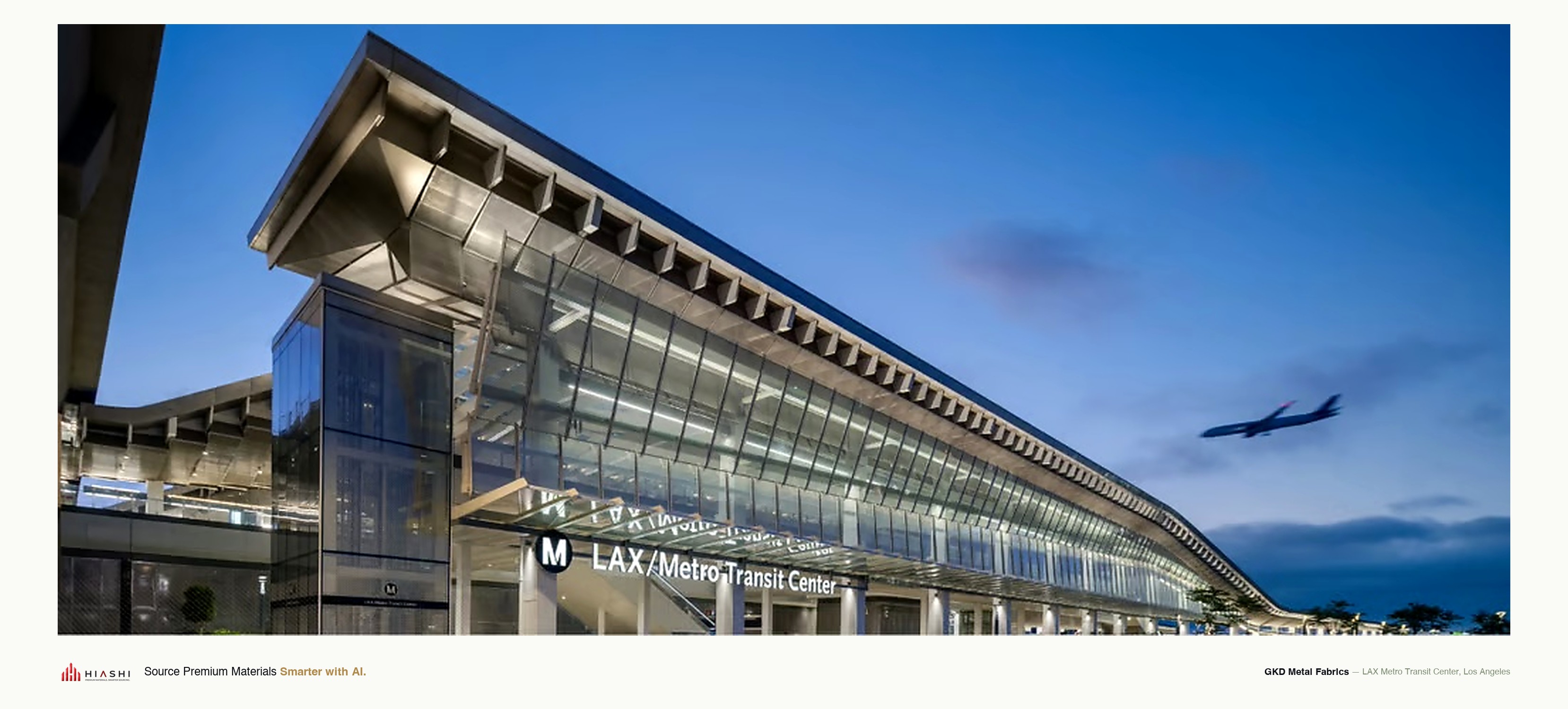

The LAX Metro Transit Center is a pivotal mobility hub connecting Los Angeles International Airport (LAX) with Metro Rail lines and regional bus networks, engineered in preparation for the 2028 Los Angeles Olympic Games.
1.1 Custom Fabrication of 1,400 Panels
GKD manufactured 1,400 individually tailored pre-fabricated mesh ceiling cassettes following complex roof geometries between 2018 and 2024 in Düren, Germany.
1.2 State of California Regulatory Certification
The ceiling system is certified to rigorous State of California construction, fire safety and seismic standards.
1.3 Inter-trade Installation Precision
Inter-trade installation alignment achieved continuous flowing ribbon aesthetics without visible framing breaks or structural gaps.
2. Technical Specification Breakdown: GKD OMEGA 1520 PC

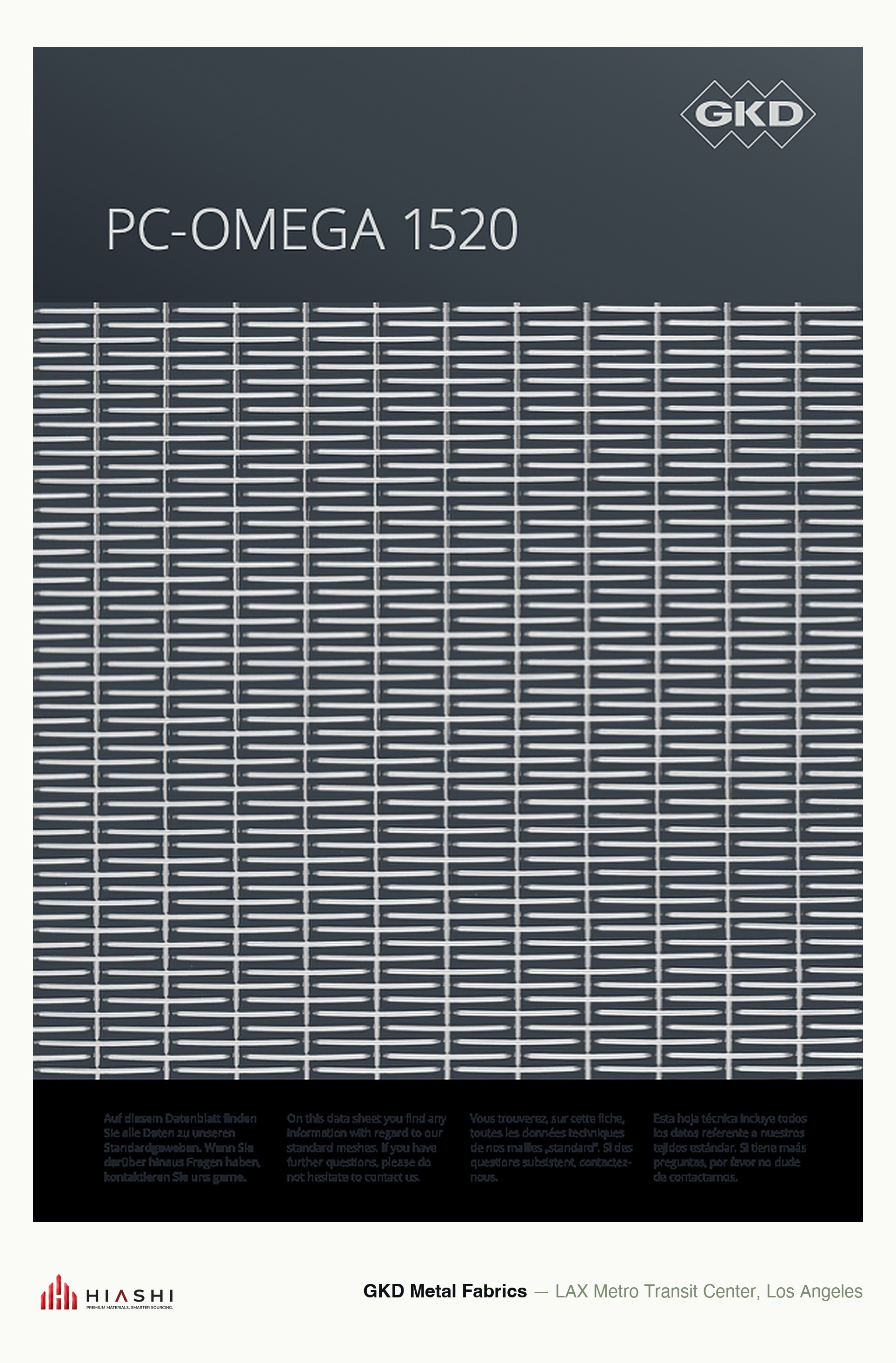

The GKD OMEGA 1520 PC weave is a rigid stainless steel mesh engineered specifically for high-durability architectural ceiling and facade applications.
| Technical Metric | Standard Value | Functional Benefit for Project |
|---|---|---|
| Alloy Material | Stainless Steel T316L (EN 1.4404) | Absolute marine climate corrosion immunity |
| Warp Cable Diameter | $\varnothing$ 2.0 mm | Provides structural cable integrity and specular reflection |
| Warp Cable Pitch | 17.5 mm | Establishes visual directional rhythm |
| Weft Rod Diameter | $\varnothing$ 1.5 mm | Maintains rigid planar flatness without sagging |
| Weft Rod Pitch | 3.5 mm | Controls open area transparency ratio |
| Open Area Ratio | 51.00% | Conceals MEP conduits, optimizes airflow & acoustics |
| Dead Weight | 5.7 kg/m² | Lightweight relative to stone or concrete panels |
| Solar Shading Factor ($g_$) | 0.38 / $F_c$ 0.64 (EN 14501) | Thermal control under overhead skylights |
3. Core Value Drivers for Project Stakeholders
3.1 For Architects: Softening Metals & Visual Depth

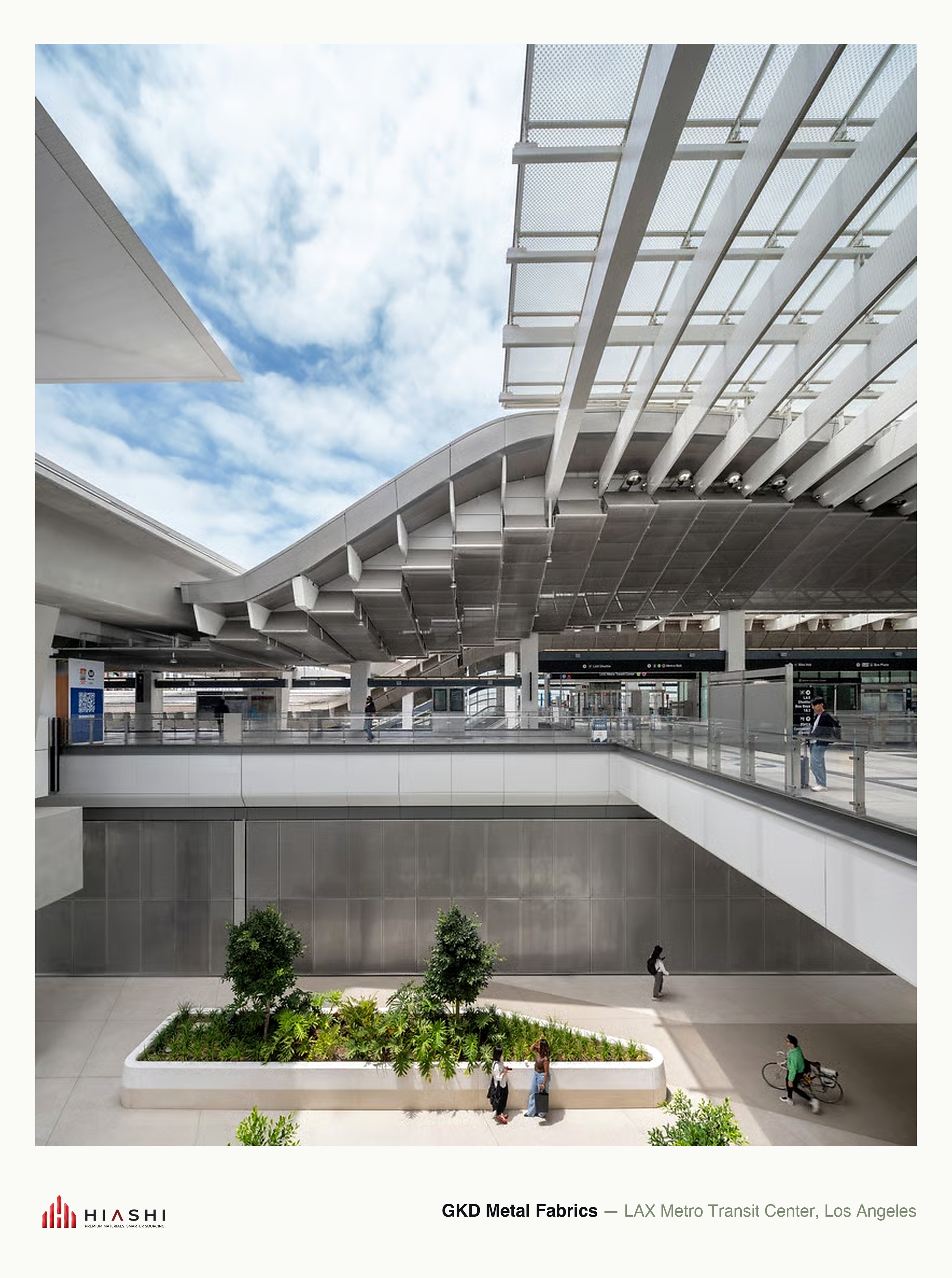

GKD OMEGA 1520 PC mesh achieves a visual phenomenon known as "Softening Metals". From a distance, the ceiling reads as a glowing metallic silk ribbon. Up close, the precision mechanical weave reflects light with refined futuristic sophistication.
3.2 For Contractors: Modular Efficiency & Structural Safety
Unlike flexible mesh requiring high-tension hydraulic jacks, OMEGA 1520 PC is a rigid mesh panel system. Pre-framed cassettes drop directly into ceiling suspension grids on site, reducing field labor time by up to 40%.
3.3 For Developers: LEED Gold & Lifecycle Economics
Manufactured from >60% recycled steel content, Class A1 non-combustible fire rated. T316L stainless steel repels dust accumulation, requires no paint coatings, and delivers a 100-year operational life.
Primary References & Standards
- GKD Group Official Newsroom (2025): "Welcome to L.A.: Distinctive metal mesh ceiling in the new LAX Metro Transit Center". GKD Group News
- GKD OMEGA 1520 PC Technical Data Sheet: Specifications, EN 14501 metrics. GKD Architecture
- Grimshaw Architects & Arup: LAX Metro Transit Center Project Design Documentation.
